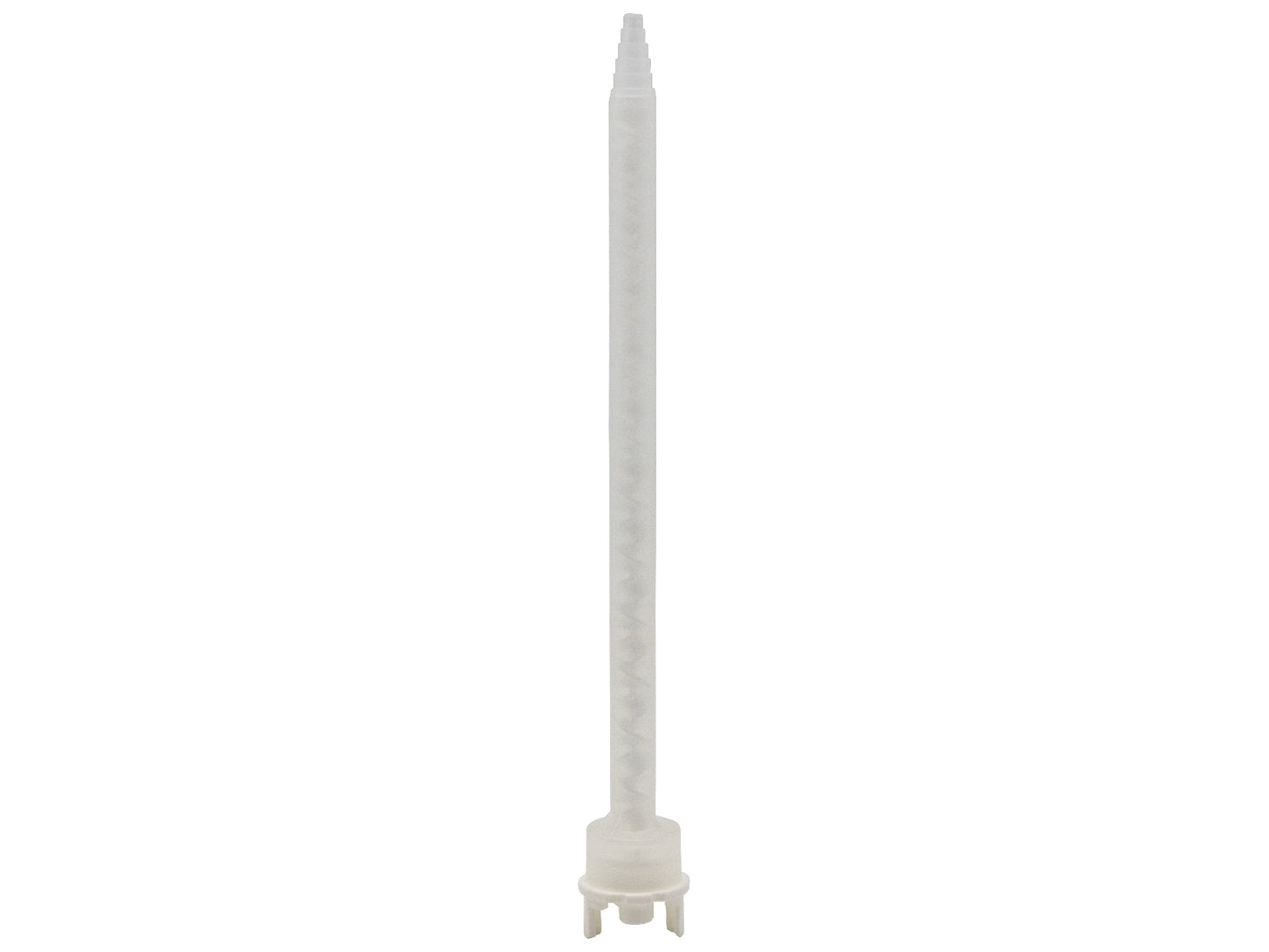

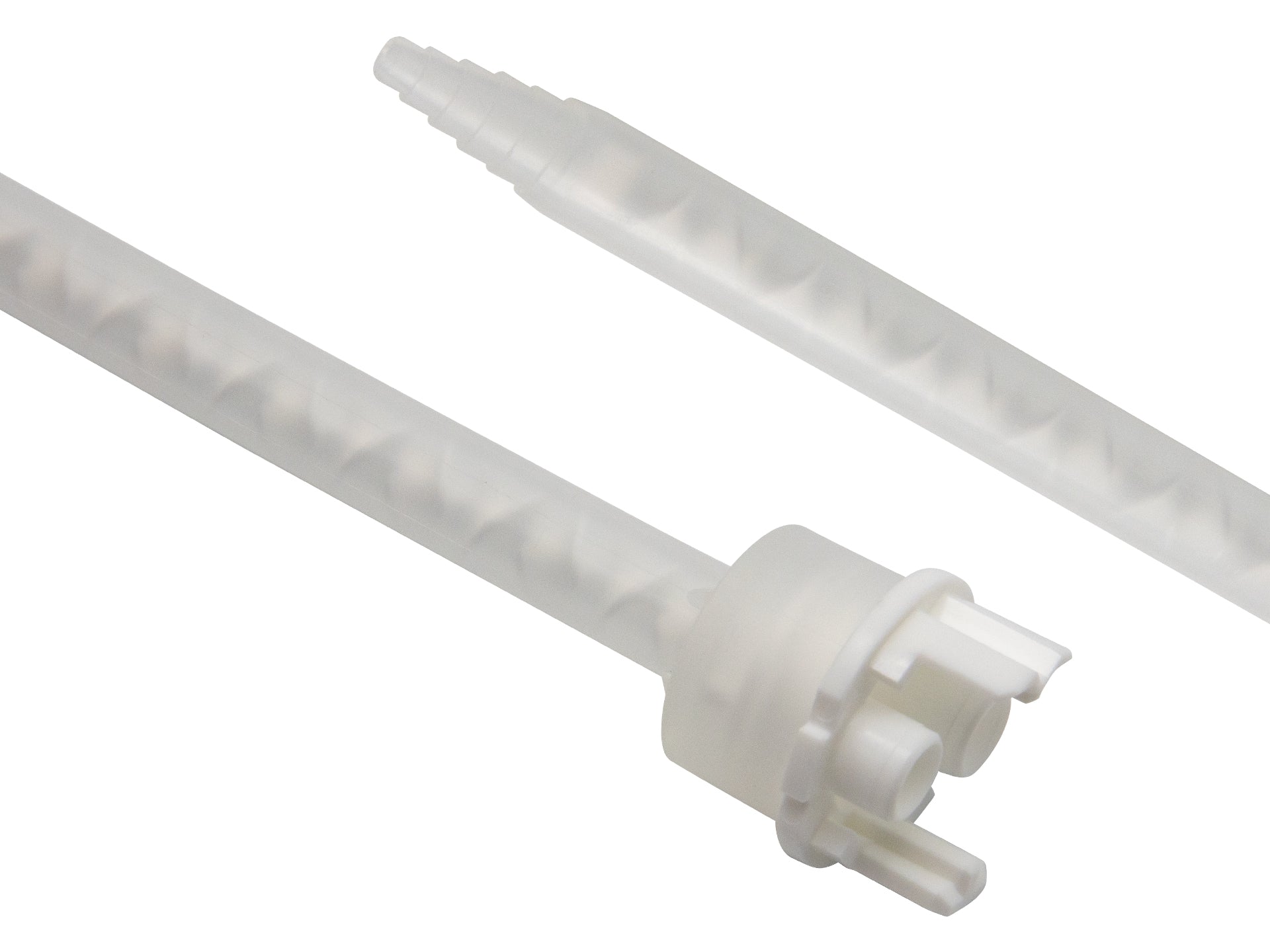

Static mixer MIXPAC MFH 06-24T

Quantity	Unit price
600+	1,43 €
1400+	1,19 €

1 week

Regular price 1,71 €^*

* excl. VAT and shipping

Article number 0001-9998-0624MT

Weight 0.008 kg

Mixer technology Spiral mixer

Number of mixing elements 24 mixing elements

Outer diameter (mm) 10.00

Nozzle design at the outlet stepped

Nozzle opening at the outlet (mm) 1.80

Element diameter (mm) 6.00

Housing inlet F-System 1:1 / 2:1 (white)

Case length (cm) 19.40

Material plastic

Manufacturer no. MFH 06-24T

PU / Box 1400 pieces (PU / box)

Volume (ml) 5.40

Specification

Mixing elements: Polypropylene
Housing: Polypropylene
F-connector with separate inlets for components A and B – ensures a fully sealed interface between the F-cartridge and the mixer
Helix mixer (MIXPAC™) version MFH (white) – suitable for 1:1 and 2:1 mixing ratios, featuring a stepped tip
Helix mixer (MIXPAC™) version MFHX (orange) – suitable for 4:1 and 10:1 mixing ratios, featuring a stepped tip
Compatible with various nozzle types (e.g. wide-slot nozzles) in 8 mm or 13 mm diameters
Replacement product for the earlier MEF series (with blue elements)

Documents

Datenblatt Einwegmischer Kunststoff Spiralmischer
