Static mixer medmix Mixpac MAH 05-13D
Select quantity
Larger quantities? Request a quote
* excl. VAT and shipping
Worldwide shipping Credit card, PayPal or invoice Personal advice: +49 (6373) 819980
Article number 0001-9998-0513MAHD
Weight 0 kg
Mixer technology Spiral mixer
Number of mixing elements 13 mixing elements
Outer diameter (mm) 7.60
Nozzle design at the outlet Straight
Nozzle opening at the outlet (mm) 4.90
Element diameter (mm) 5.40
Housing inlet Bayonet connection
Case length (cm) 7.90
Material plastic
Manufacturer no. MAH 05-13D
PU / Box 7000 pieces (PU / box)
Innotech article number ITR1013

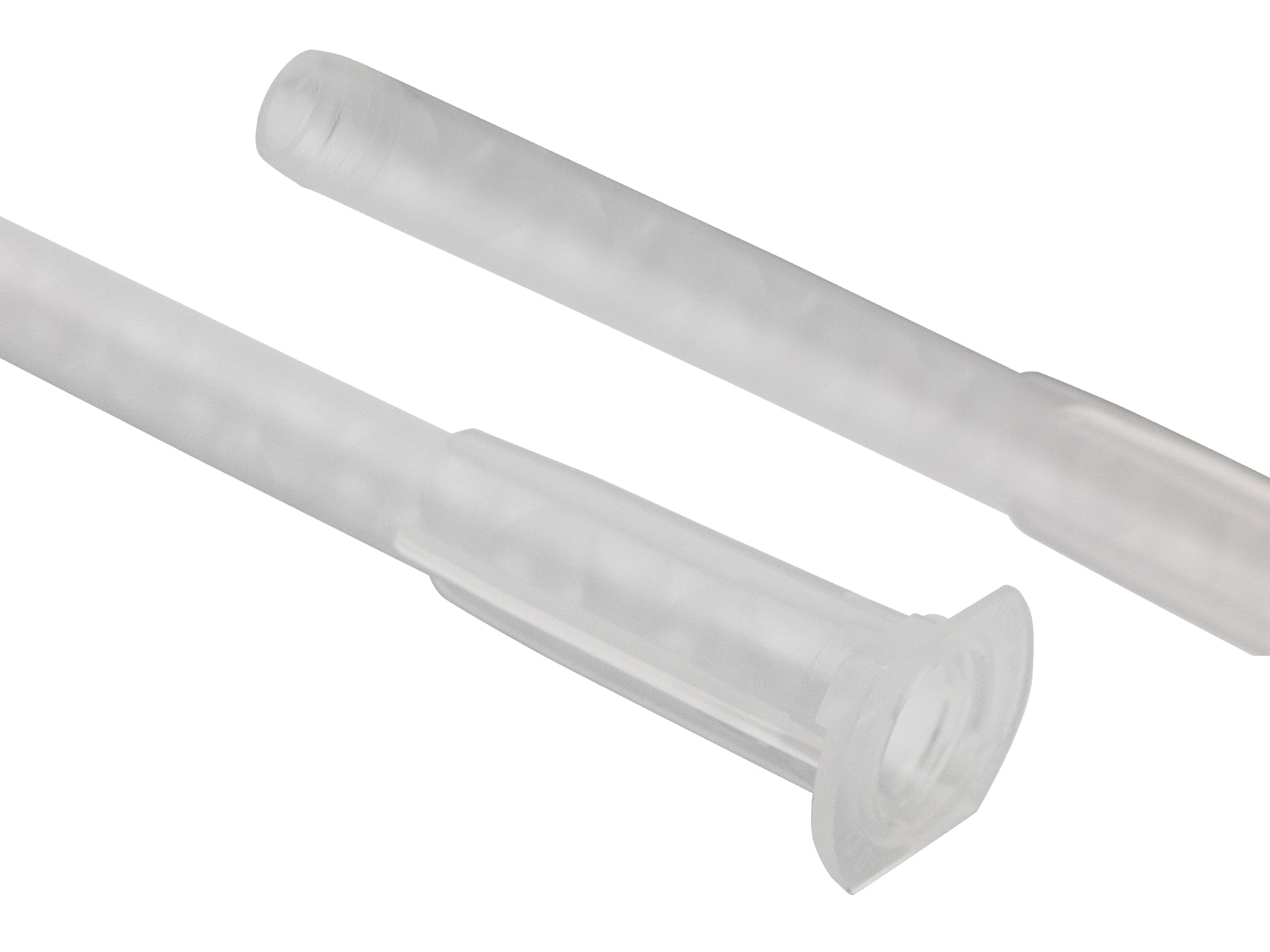

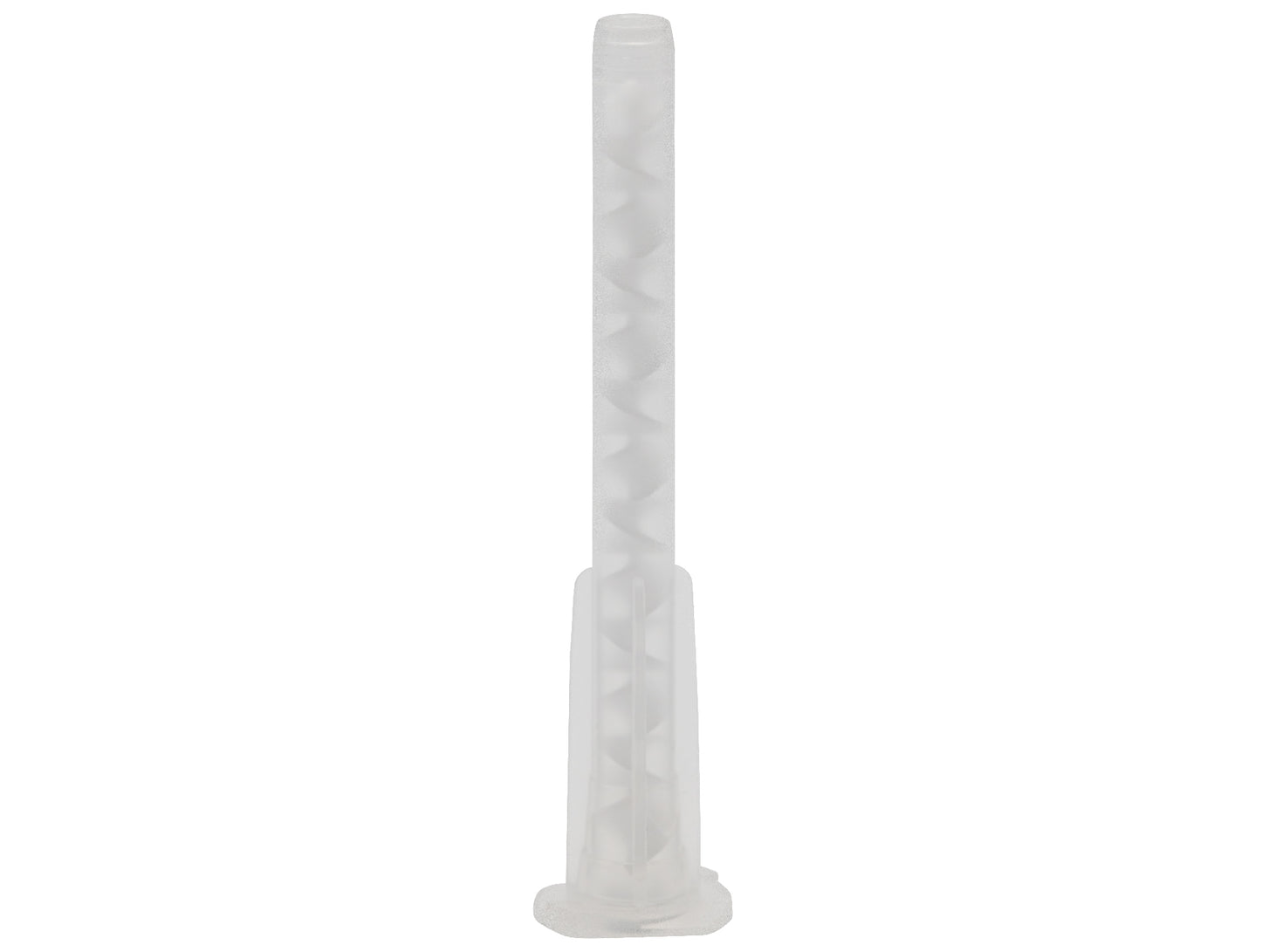

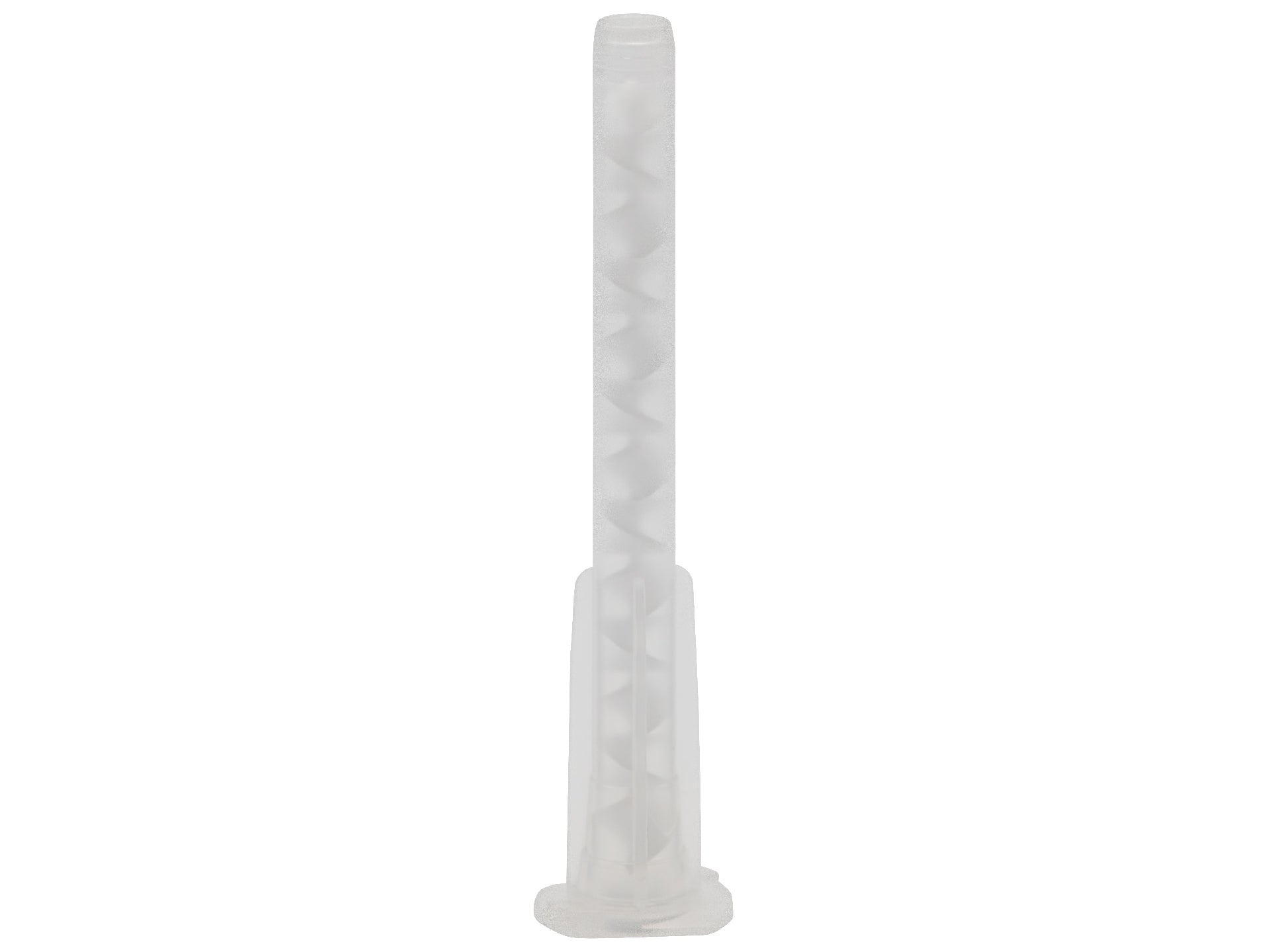

The MAH 05-13D static mixer is a high-performance helical mixer from the medmix MIXPAC A system for precise, homogeneous mixing of two-component adhesives and sealants. The optimised helical geometry ensures uniform mixing with minimal material loss.
The A-system bayonet connection allows a simple and secure connection to cartridges from 25 ml to 75 ml. Separate inlets for components A and B ensure a fully sealed interface and prevent mixing in the connection area.
The MAH version (white) is designed for mixing ratios of 1:1 and 2:1. Thanks to its larger diameter and increased number of mixing elements, the mixer offers improved mixing performance. The straight outlet allows direct and controlled application.
Intra Oral Tips (IOT) can be used and extend the application options for precise dispensing tasks.
Typical applications include epoxy resins, polyurethanes, silicones and other 2C adhesives and sealants in precise dispensing and assembly applications.
