Statikmischer STATOMIX MS 06-18T

Name: Statikmischer STATOMIX MS 06-18T
Brand: t-s-i.de
SKU: 0001-9998-0618MS
Availability: InStock

Available soon

Article number 0001-9998-0618MS

Weight 0.02 kg

Mixer technology Spiral mixer

Number of mixing elements 18 mixing elements

Outer diameter (mm) 10.00

Nozzle design at the outlet stepped

Nozzle opening at the outlet (mm) 1.80

Element diameter (mm) 6.40

Housing inlet Bell connection 16.70 mm

Case length (cm) 18.60

Material plastic

Pressure limit (Bar) 30 bar

PU / Box 2000 pieces (PU / box)

Volume (ml) 3.60

medmix ID 162540

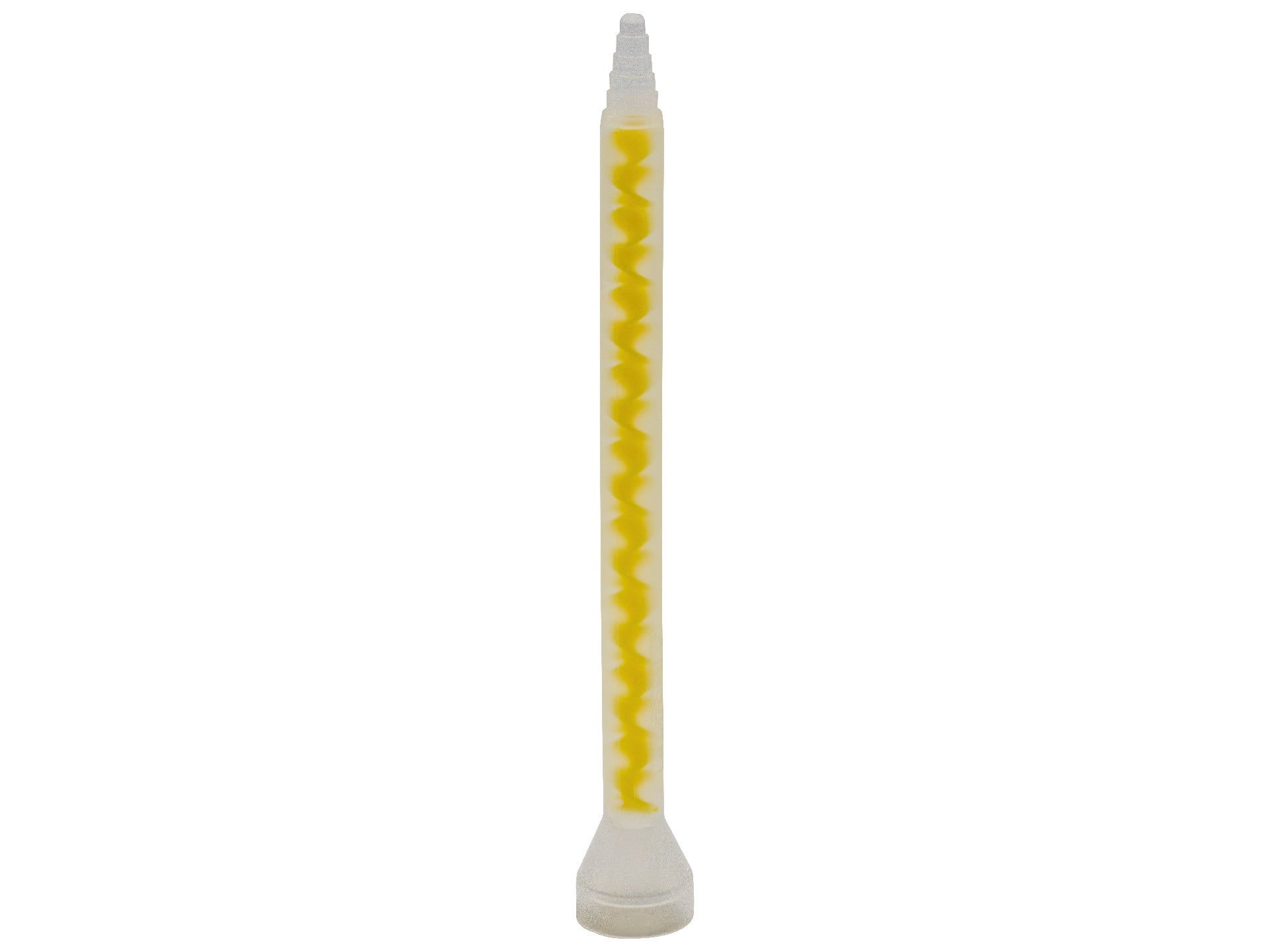

The STATOMIX MS 06-18T from medmix is a compact, high-quality plastic static mixer with 18 mixing elements and an inner diameter of 6 mm. The mixer features a 16.7 mm bell connection and is ideal for use in 2-component systems and mixing or dispensing equipment.

Thanks to its robust construction and precise geometry, the STATOMIX MS 06-18T ensures consistent and homogeneous mixing of two-component materials even under high pressure. It is particularly suitable for industrial applications where precision and reliability are essential.

Features

Plastic static mixer with 18 mixing elements
Inner diameter 6 mm, bell connection 16.7 mm
For 2-component systems (epoxy, PU, silicone)
Disposable mixer made of polypropylene and polyacetal
Especially suitable for high-pressure applications
Can also be mounted on 2K cartridges
Industrial standard connection, compatible with mixing and dispensing systems
Combo mixer = combination of different diameters
Protective tubes must be used with all mixers

Technical Data

Elements: Polyacetal
Housing: Polypropylene
Connection: Bell type 16.7 mm
Type: STATOMIX MS 06-18T
Application: Machine mixer for 2-component systems and dispensing equipment

Documents

Datasheet-Datenblatt Static Mixer Plastic Spiral-Statikmischer Kunststoffspirale

Datasheet-Datenblatt medmix STATOMIX ME MS Series-medmix STATOMIX ME MS Serien
