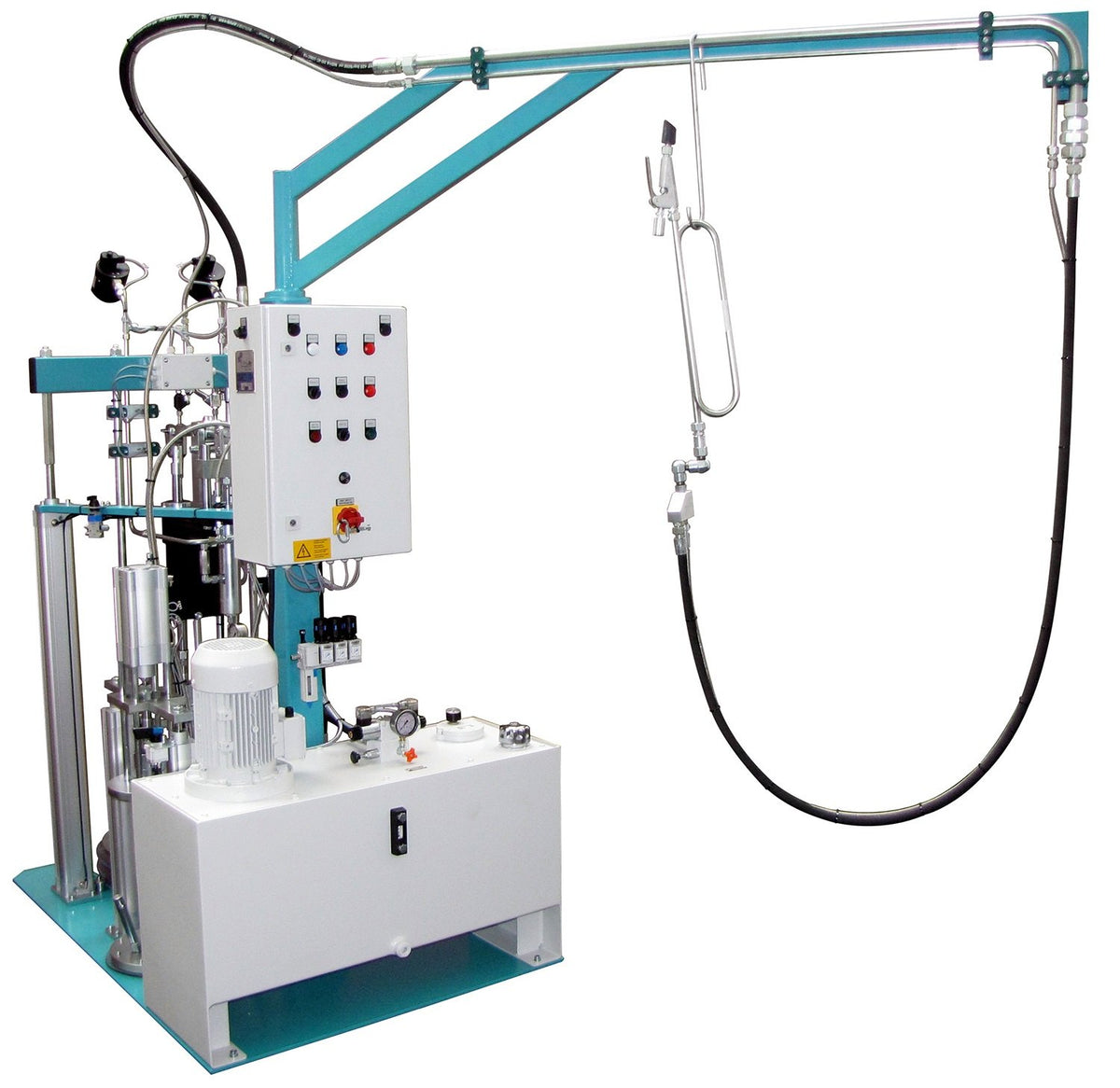

mastermix XS

2C Piston Dispensing System

mastermix XS

From 26.900 € · excl. VAT and shipping

mastermix XS

The mastermix XS is built for edge sealing of insulating glass: 2C material at 5:1 or 10:1.

Mixing ratio: 5:1 or 10:1
Output rate: max. 3,500 g/min*
Containers: 200 l and 20 l

* depending on viscosity

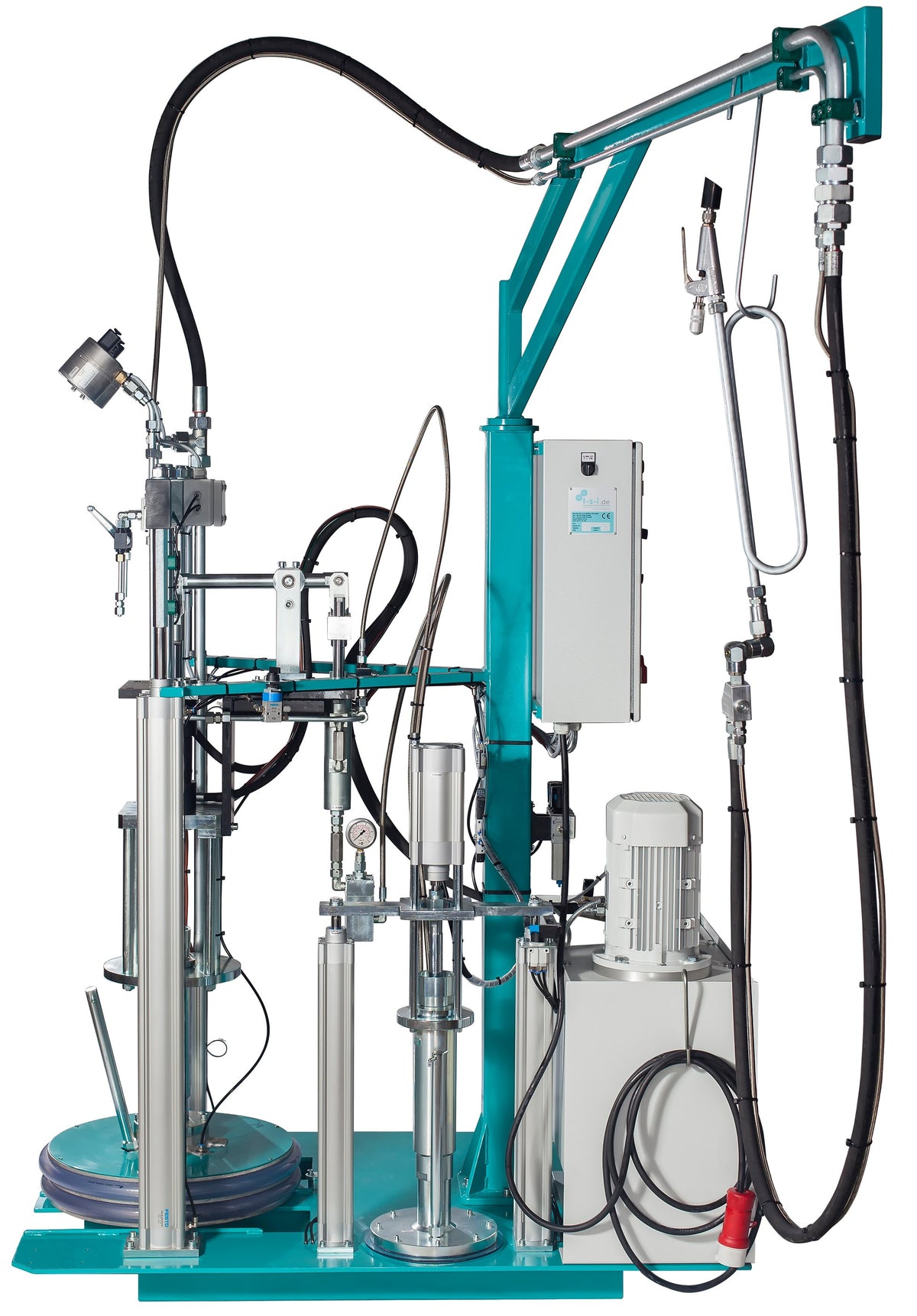

Piston technology

Mechanically coupled, robustly built.

A hydraulically driven shovel piston pump delivers the A component, a pneumatically driven shovel piston pump the B component. A metering pump, mechanically coupled to the hydraulic cylinder of the A side, adds the B component at a fixed ratio of 5:1 or 10:1.

mastermix XS: Mechanically coupled, robustly built.

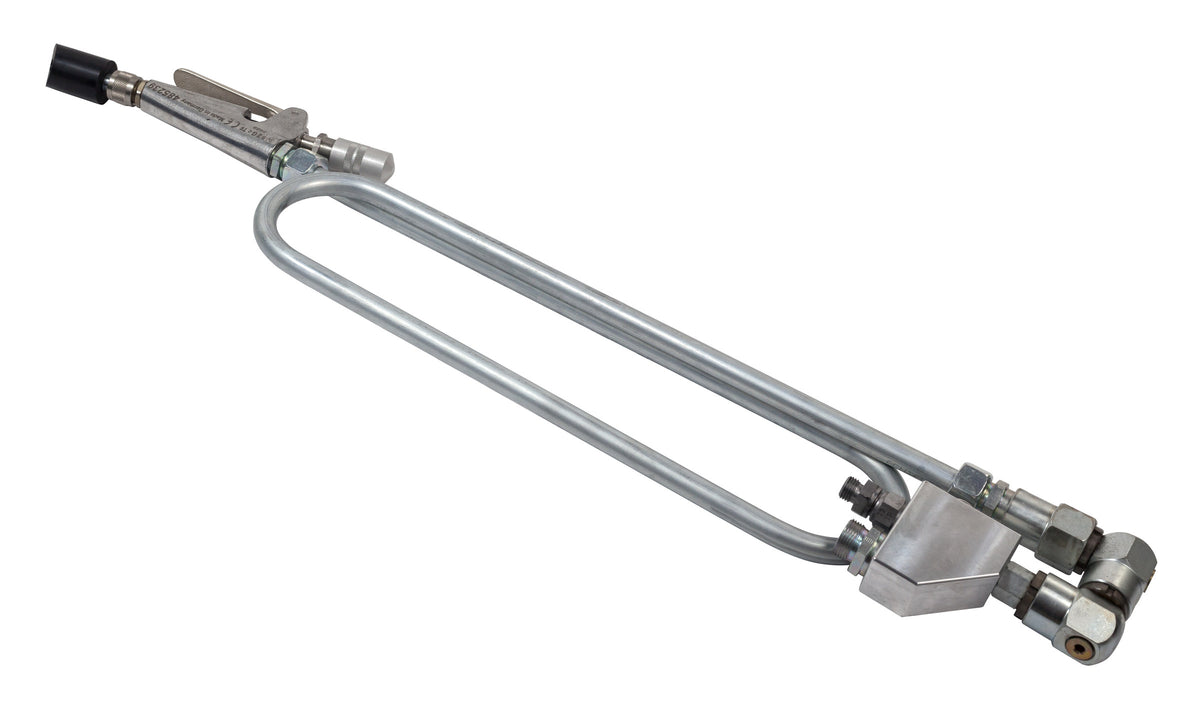

Trumpet mixer

Mixed in the robust trumpet mixer.

Both components are mixed directly in the trumpet mixer, designed for daily use in insulating glass production.

mastermix XS: Mixed in the robust trumpet mixer.

Insulating glass

For manual edge sealing.

Robustly built, easy to operate and easy to maintain: made for everyday work at the sealing station.

mastermix XS: For manual edge sealing.

2.500+ systems installed worldwide Since 1998 mixing and metering technology 100% developed and built in Germany

Technical data

Output capacity max. 3,500 g/min*
Hydraulic control of the A-side
Pneumatic control of the B-side
Power connection 3 x 400 V + N + PE / 3.8 kW
Compressed air requirement 6 bar, 50 l/min
Dimensions L x W x H 1500 x 1000 x 1800 mm
Height with swivel arm 2500 mm
Standard swivel arm length 1900 mm
Standard hose length 2500 mm

*depending on material viscosity, temperature, material batch, etc.

Standard equipment

Siemens S7-1200
Optical and acoustic pot life monitoring
Material shortage monitoring
Overpressure protection
Follower plate with reduced residual quantities
Two-hand safety control
Drum empty signal with pump shutdown
Maintenance-free pump sealing
Dosage control
Manual mixing ratio control
Fixed mixing ratio 5:1 or 10:1, slightly adjustable
Basic rinsing possible
200 l A drum / 20 l B pail
Optimized 200 l drum change (recesses in base plate for pallet truck)

*Equipment may vary depending on project requirements

Optional equipment

Swivel arm extension
Increased swivel arm height
Longer hose packages
Special paintwork
Feed pump B component for 200 l drum (containers A/B 200 l/200 l)
A component from 20 l pail (containers A/B 20 l/20 l)
Other container sizes on request
Follower plate heating A component
Cartridge filling (1C and 2C)
Mobile system with wheels
Collecting tray for hydraulic unit
Purging pump
Freezer including cooling brine

Further options on request.

Documents

mastermix XS

This system

mastermix XS

Use case

For edge sealing of insulating glass, mixed in the trumpet mixer

Mixing technology

Trumpet mixer

Dimensions L x W x H

1500 x 1000 x 1800 mm

Price

from 26.900 €

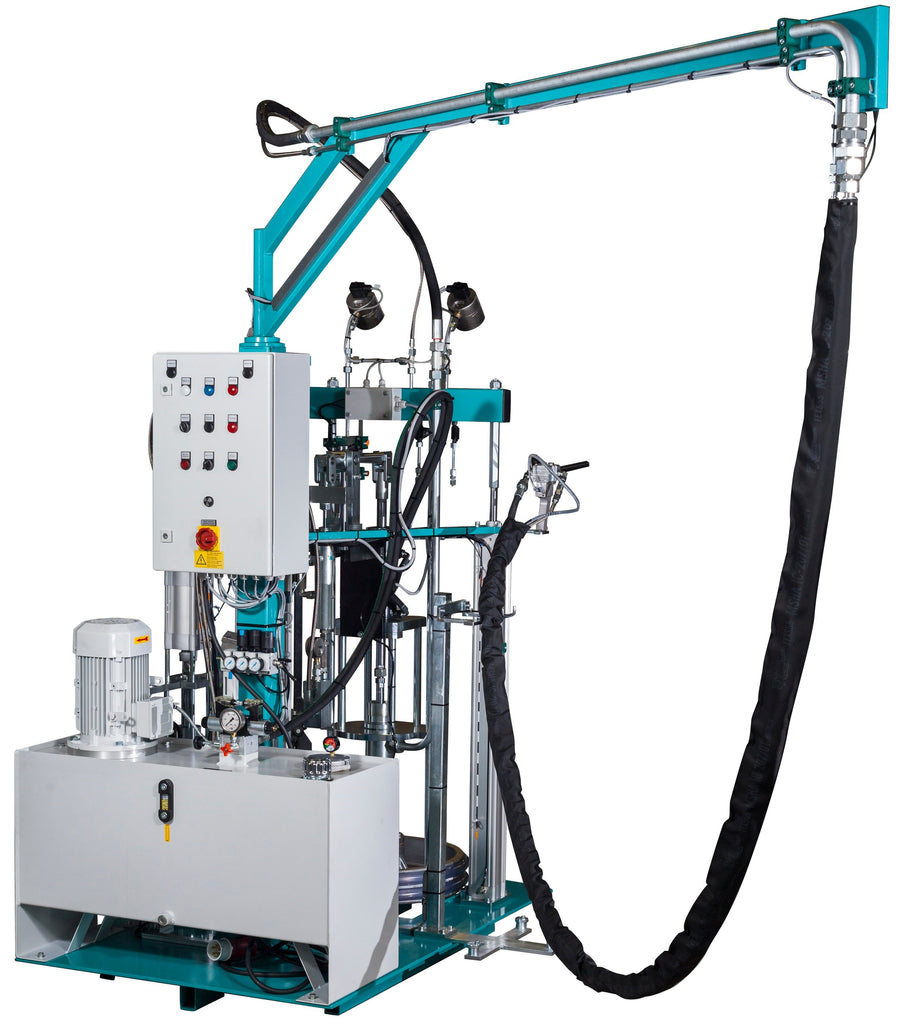

mastermix XS 2K

mastermix XS 2K

Use case

For 2C adhesives and sealants, mixed in the static mixer at the 2C material valve

Mixing technology

2C material valve with static mixer

Dimensions L x W x H

1500 x 1000 x 1800 mm

Price

from 28.900 €
