Static mixer nordson 7700892 160-812ll

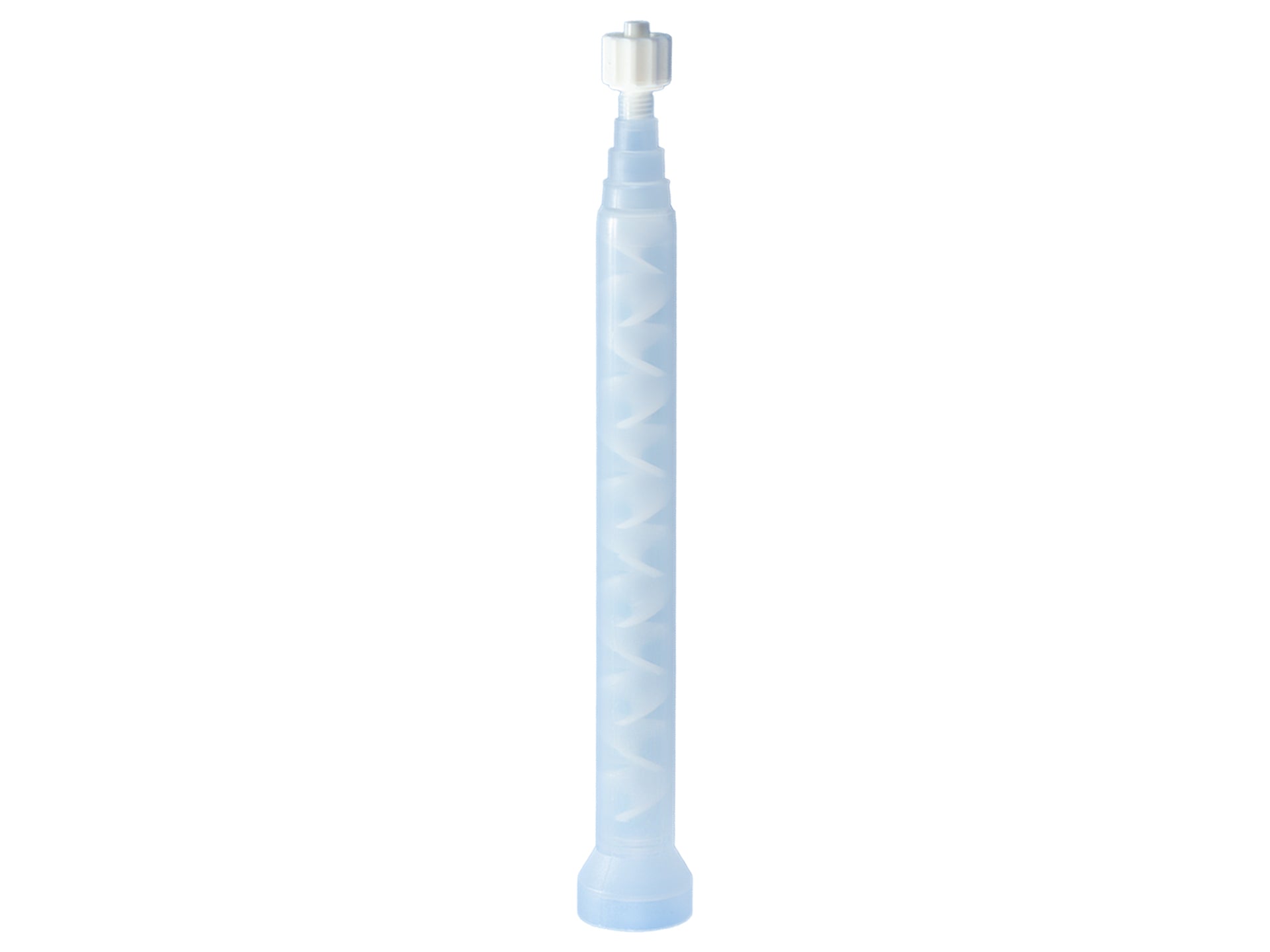

Static mixer Nordson 7700892 160-812LL

upon request

Article number 0001-9998-0912LL

Weight 0.011 kg

Mixer technology Spiral mixer

Number of mixing elements 12 mixing elements

Outer diameter (mm) 12.95

Nozzle design at the outlet Luer Lock

Nozzle opening at the outlet (mm) 3.05

Element diameter (mm) 9.30

Housing inlet Bell connection 16.70 mm

Case length (cm) 13.92

Material plastic

Pressure limit (Bar) 21 bar

Manufacturer no. 7700892 160-812LL

PU / Box 1000 pieces (PU / box)

The Nordson 7700892 static mixer (160-812LL) provides precise and efficient mixing performance for two-component adhesives, sealants, and industrial materials. Its spiral mixer design with 12 mixing elements ensures homogeneous blending and stable, predictable material flow. With durable acetal elements and a polypropylene housing, this mixer offers dependable performance even in demanding industrial applications. We recommend using protective pipes if the pressure in the mixer exceeds 10 bar (150 psi).

Specification

Elements: Acetal
Housing: Polypropylene

Accessories

Material valves for stationary or handheld applications with optional electric or pneumatic actuation
Material joints in various versions
Night caps and ratio check caps
Retaining nuts
Protective pipes

Documents

Datasheet-Datenblatt Static Mixer Plastic Spiral-Statikmischer Kunststoffspirale
