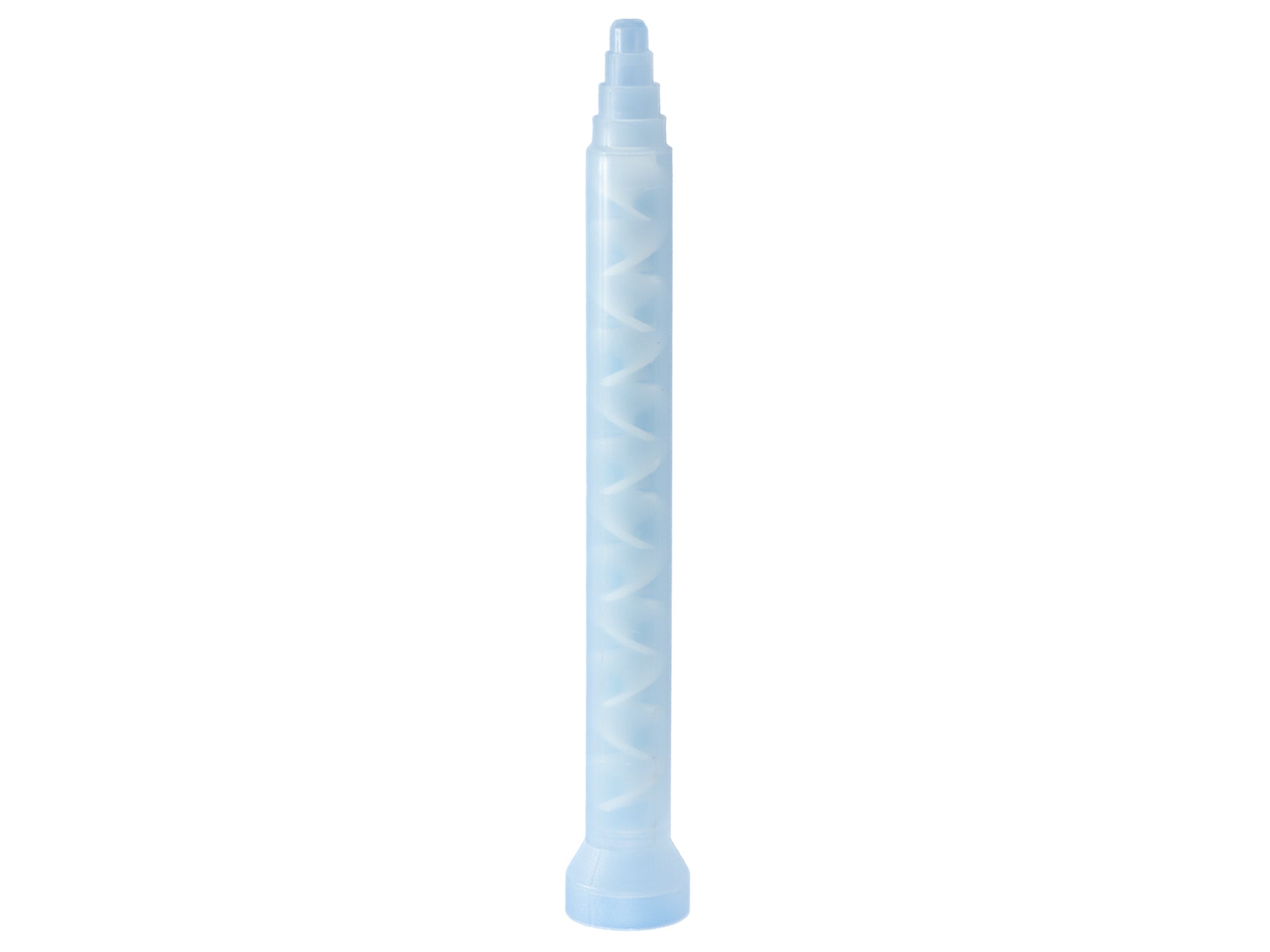

Static mixer Nordson 7700885 160-812

upon request

Request quote

Article number 0001-9998-0812

Weight 0.009 kg

Mixer technology Spiral mixer

Number of mixing elements 12 mixing elements

Outer diameter (mm) 12.95

Nozzle design at the outlet stepped

Nozzle opening at the outlet (mm) 3.05

Element diameter (mm) 9.30

Housing inlet Bell connection 16.70 mm

Case length (cm) 13.92

Material plastic

Pressure limit (Bar) 21 bar

Manufacturer no. 7700885 160-812

Documents

Datasheet-Datenblatt Static Mixer Plastic Spiral-Statikmischer Kunststoffspirale
