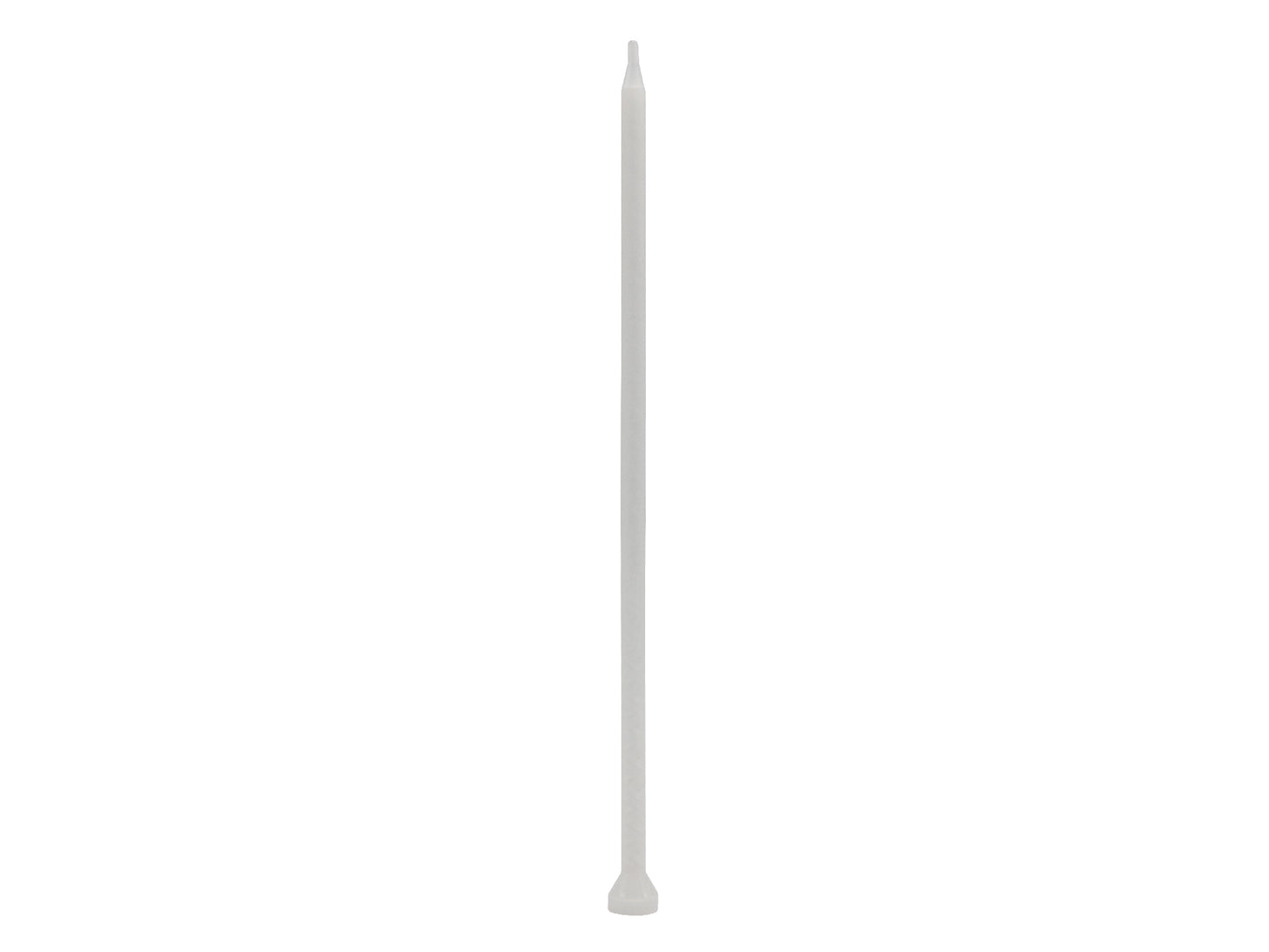

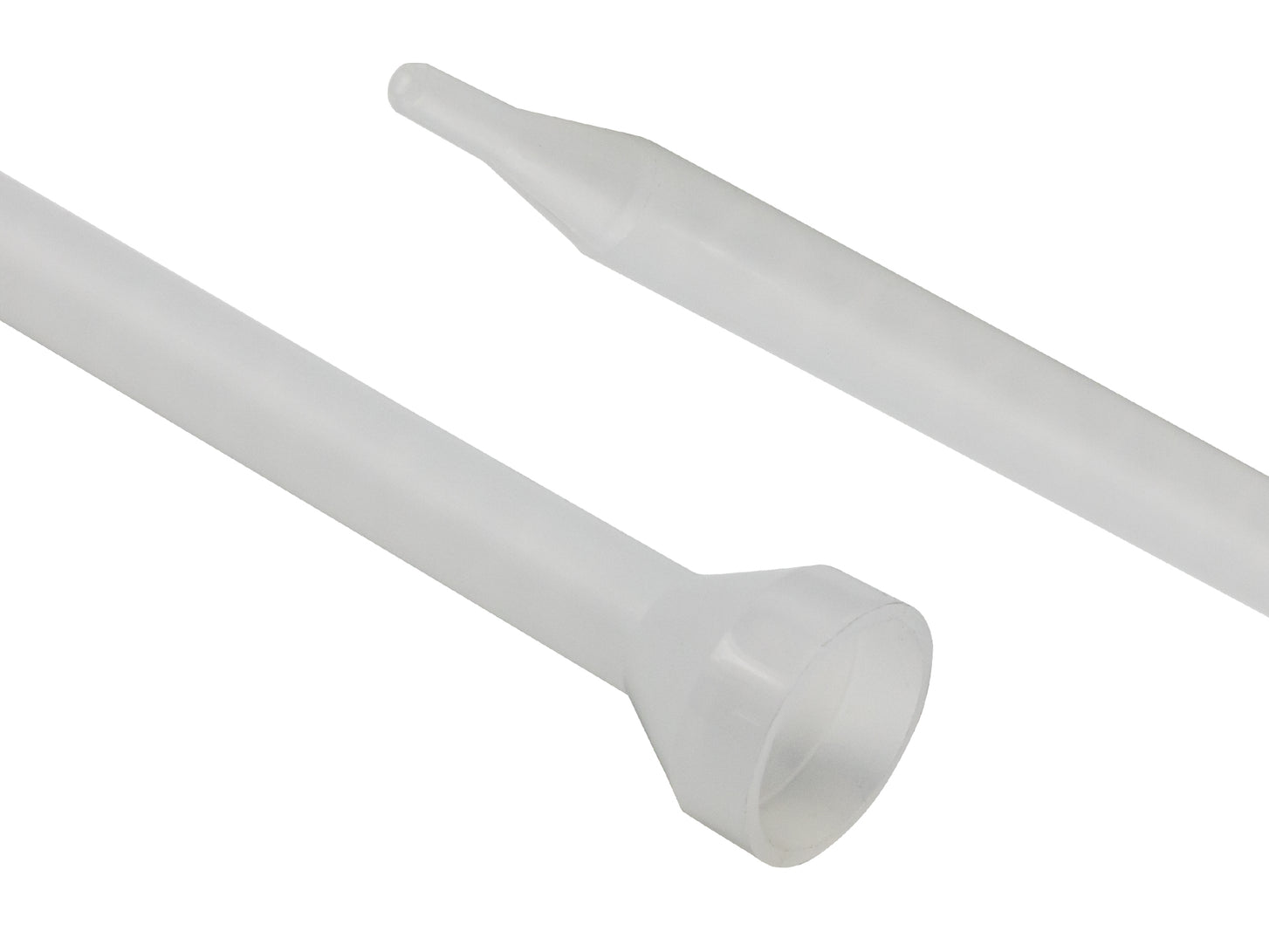

Static mixer Nordson 7700866 160-648

The Nordson 7700866 (160-648) static mixer is a helical mixer for the reliable, homogeneous mixing of two-component adhesives, sealants and potting compounds. The helical mixing geometry ensures even blending with low residual volume.

With 48 mixing elements it achieves uniform mixing across the full outlet length. The Polyacetal mixing elements and polypropylene housing ensure reliable use even with demanding materials.

At pressures above 10 bar (150 psi) inside the mixer, the use of retainer tubes is required.

Specification

• Elements: Polyacetal
• Housing: Polypropylene
• Mixer technology: Helical mixer
• Number of mixing elements: 48

Particularly suitable for industrial applications with 2C adhesives, silicones, polyurethanes and resins.
