MIXPAC DP2X 200-01-25-01 Adhesive Dispenser (mixing ratio 1:1, 2:1)

Name: MIXPAC DP2X 200-01-25-01 Adhesive Dispenser (mixing ratio 1:1, 2:1)
Brand: MIXPAC
SKU: 0001-5203-0800
Price: 328.00 EUR
Availability: InStock

In stock

Regular price 328,00 €^*

* excl. VAT and shipping

Article number 0001-5203-0800

Weight 2.9 kg

Drive Pneumatic

Container type Cartridge (2K)

Filling volume 200 ml

Mixing ratios 1:1 and 2:1

Thrust force 2.5 kN

Order type Bead application

Air pressure 6.8 bar

Components 2K

The MIXPAC DP2X 200-01-25-01 is a professional pneumatic 2-component dispenser designed for 200 ml cartridges in the C and F systems. The device delivers precise dispensing, consistent material pressure, and an ergonomic, lightweight design that ensures comfortable, fatigue-free operation even during extended use.

With its robust construction made of cast aluminum and glass fiber–reinforced nylon, the DP2X provides maximum reliability in industrial environments. Supporting mixing ratios of 1:1 and 2:1, the dispenser is ideal for epoxy resins, polyurethanes, silicones, and other high-viscosity 2-component materials. The integrated anti-drip function ensures clean application without undesired dripping.

Perfect for applications such as bonding, sealing, potting, gap filling, and general industrial assembly processes.

Features:

Pneumatic 2-component cartridge dispenser for 200 ml systems (C-/F-system)
Compatible with mixing ratios 1:1 and 2:1
Precise dispensing and consistent material pressure for professional results
Ergonomic handle and one-hand operation for maximum user comfort
Anti-drip system prevents dripping and ensures clean work
Quick cartridge change for efficient workflow
Ideal for high-viscosity adhesives and sealants
Durable construction with cast aluminum and glass fiber–reinforced nylon
Perfect for flexible assembly workstations with moderate material consumption
For higher material volumes, MIXPAC drum dispensing systems are available

Technical Data:

Weight: approx. 2,9 kg
Length: approx. 406 mm
Maximum thrust force: 2,5 kN
Tool material: cast aluminum + glass fiber–reinforced nylon
Cartridge volume: 200 ml (C-/F-system, 2-component)
Mixing ratios: 1:1, 2:1
Air inlet: 1/4" NPT
Maximum operating pressure: 6,8 bar (100 psi)
Application: bead application

Documents

Datasheet-Datenblatt DP2X 200-01-25-01 Cartridge Dispenser-Kartuschenpresse

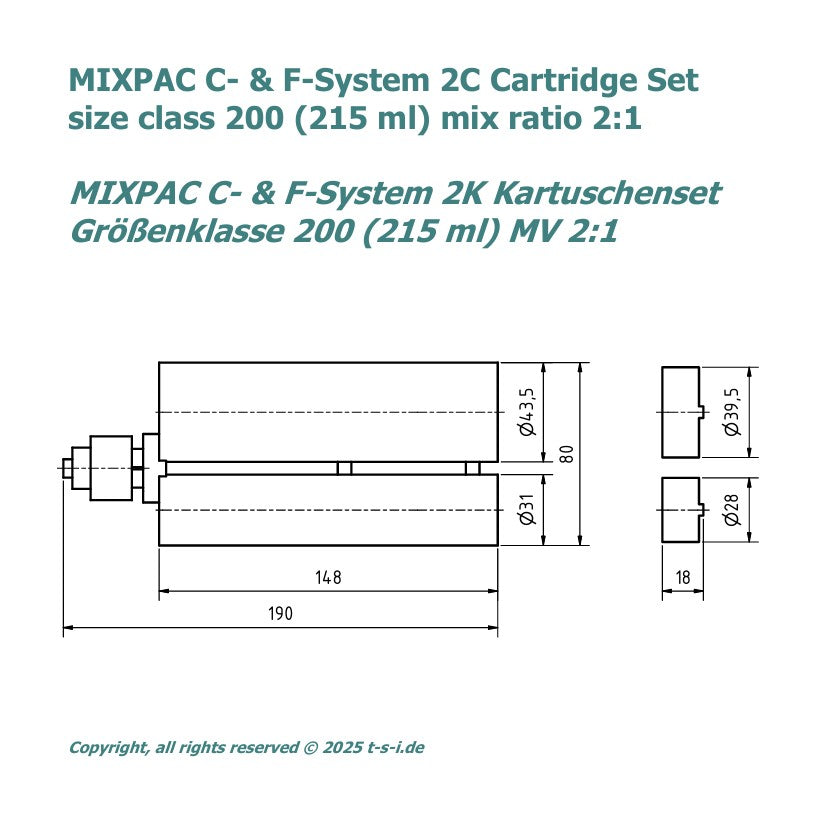

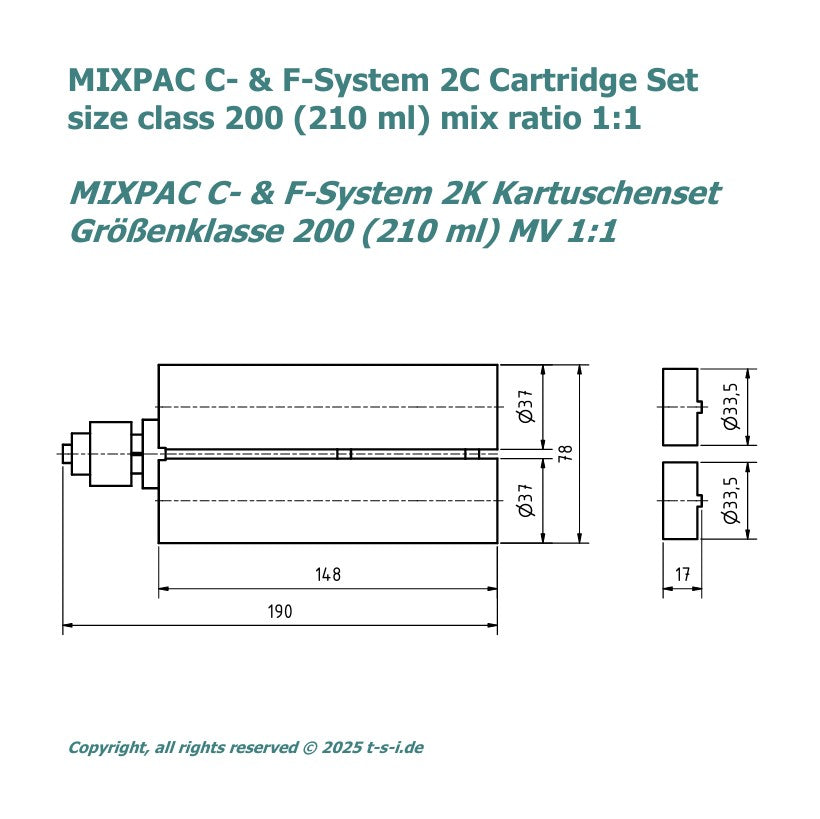

Dimension Sheet-Massblatt 2C medmix Cartridge Sets-2K medmix Kartuschensets
