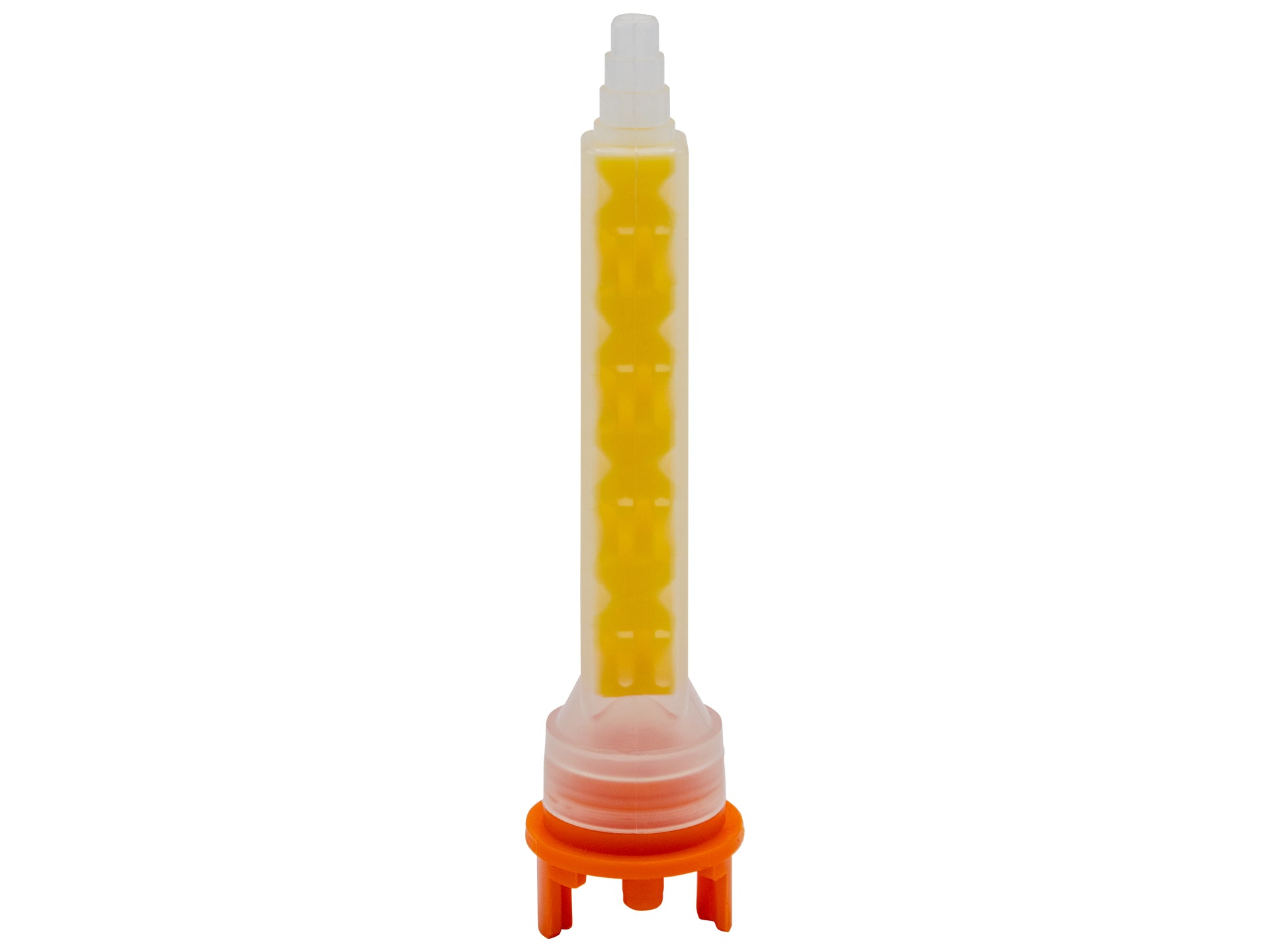

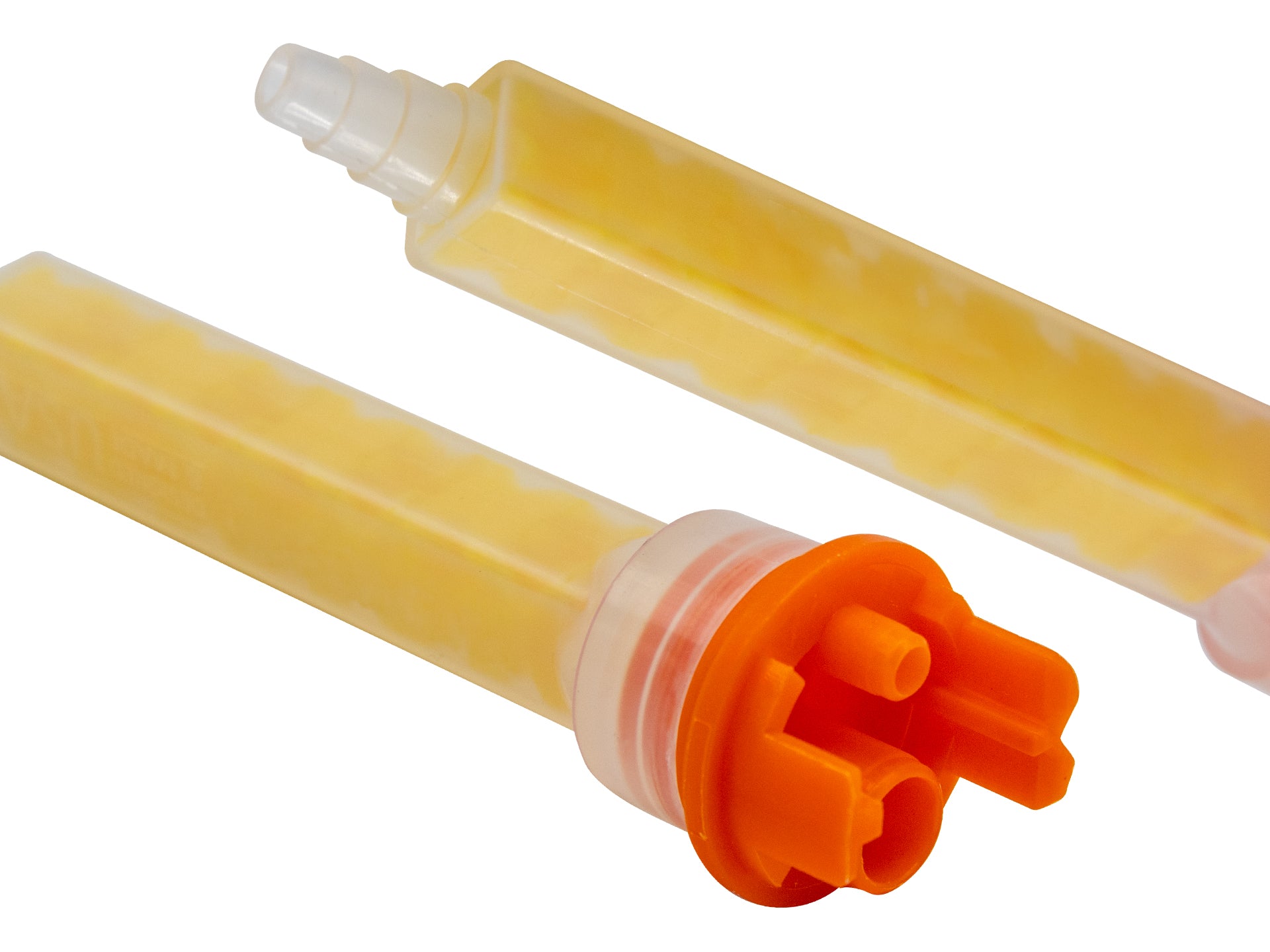

Static mixer Xemex X2-FZ8-8S (F 4:1; 10:1) F-System

Name: Static mixer Xemex X2-FZ8-8S (F 4:1; 10:1) F-System
Brand: Re Mixers, Inc.
SKU: 0001-9998-0808X2FX
Availability: InStock

Delivery time: upon request

Article number 0001-9998-0808X2FX

Weight 0.008 kg

Mixer technology Xemex®

Number of mixing elements 8 mixing elements

Nozzle design at the outlet Stepped

Element diameter (mm) 8.70

Housing inlet F-System (10:1, 4:1)

Case length (cm) 10.10

Material Polypropylene (PP)

Manufacturer no. X2-FZ8-8S

PU / Box 1000 pieces (PU / box)

Volume (ml) 5.00

Static mixer Xemex X2-FZ8-8S for two-component adhesives and sealants with mix ratios of 4:1 and 10:1. Patented Xemex technology achieves homogeneous mixing with 8 mixing elements where conventional static mixers require 18 to 32 elements. Internal diameter 8.7 mm, overall length 101 mm, retained volume 5.0 mL. Stepped tip for clean bead application. Polyester insert, polypropylene housing, F-System connection. Chemical resistance for epoxy, MMA, polyurethane and silicone systems. Suitable for manual and pneumatic dispensing systems.

Static mixer Xemex X2-FZ8-8S (F 4:1; 10:1) F-System
