Statischer Mischer Quadro MFQ 08-24T-s13 GreenLine

Quantity	Unit price
300+	1,62 €
750+	1,23 €

1 Week

Regular price 0,00 €^*

* excl. VAT and shipping

Article number 0001-9998-0824MFQGL

Weight 0.011 kg

Mixer technology Quadratische Mischer / Turbo Mischer

Number of mixing elements 24 Mischelemente

Outer diameter (mm) 11,50

Nozzle design at the outlet gestuft

Nozzle opening at the outlet (mm) 3,20

Element diameter (mm) 8,70

Housing inlet F-System 1:1 / 2:1 (weiß)

Case length (cm) 15,50

Material Kunststoff

Manufacturer no. MFQ 08-24T-s13

PU / Box 750 Stück (VPE / Box)

Volume (ml) 8,69

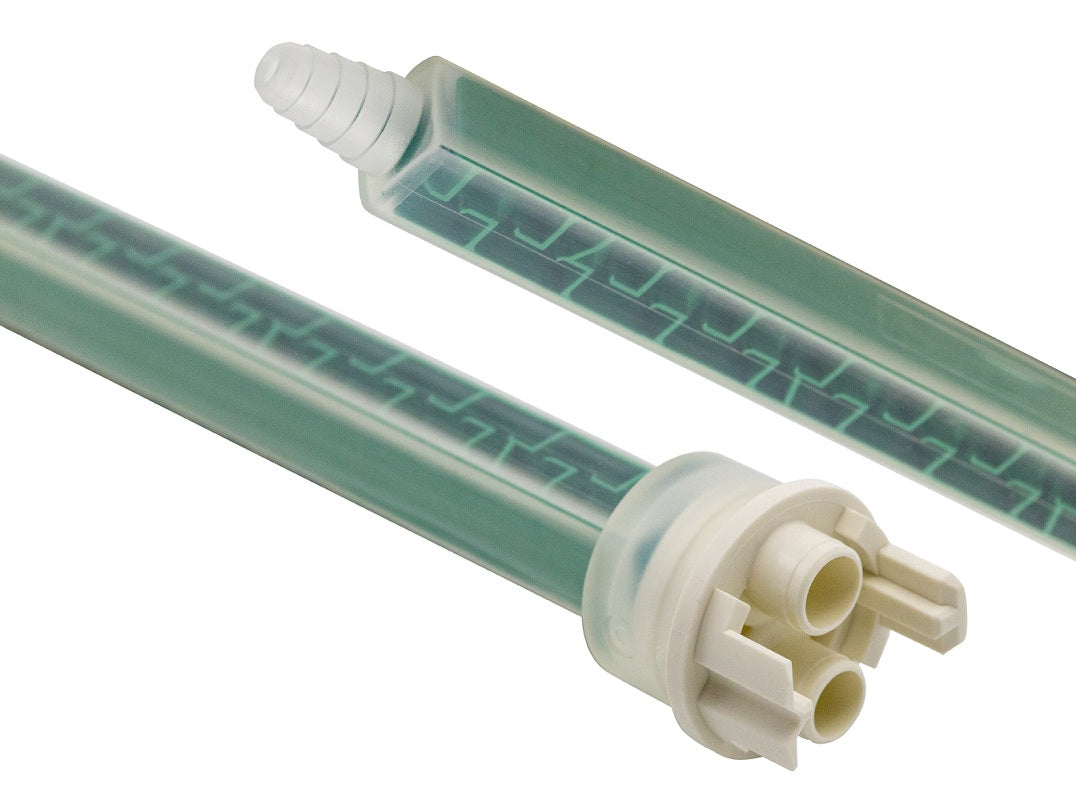

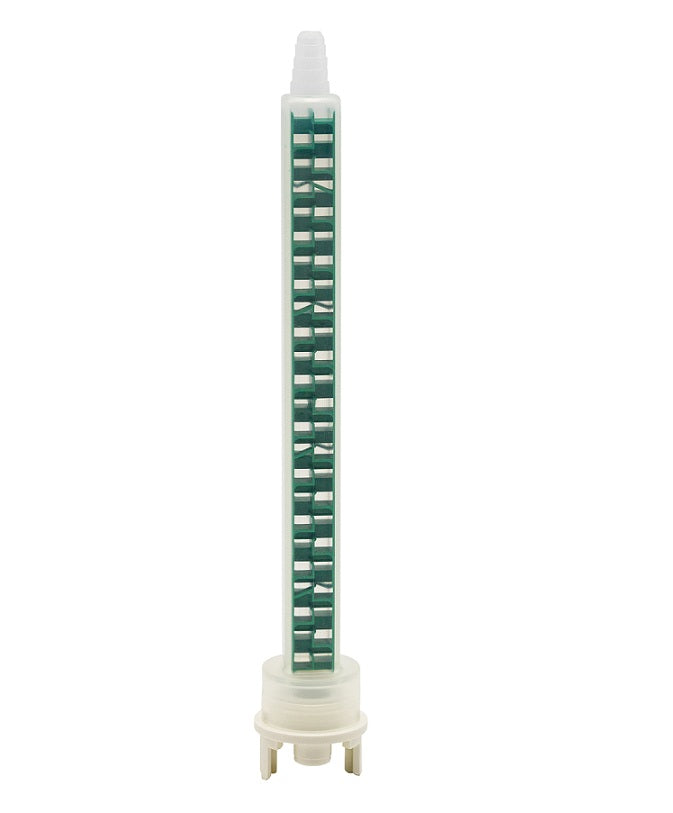

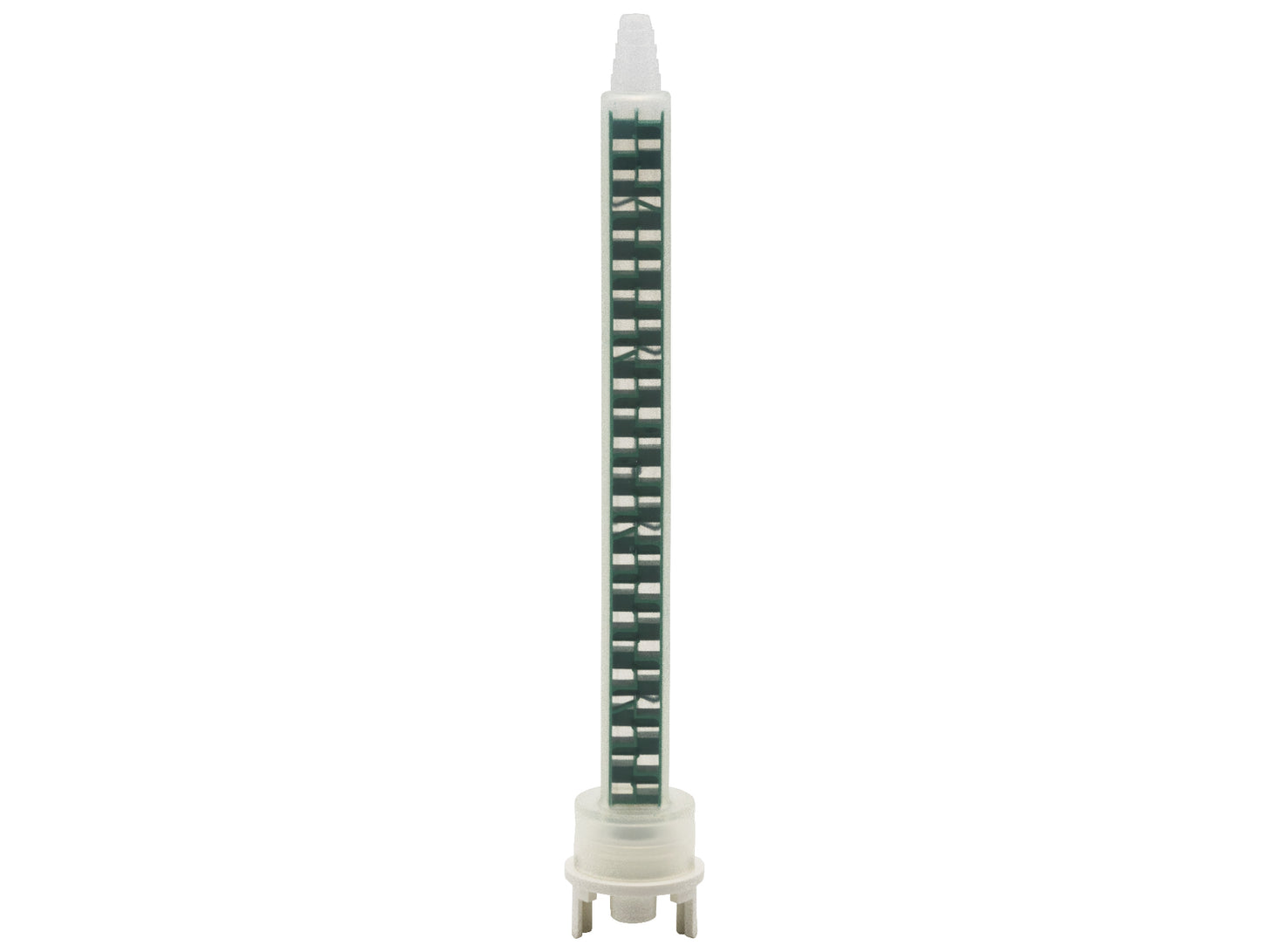

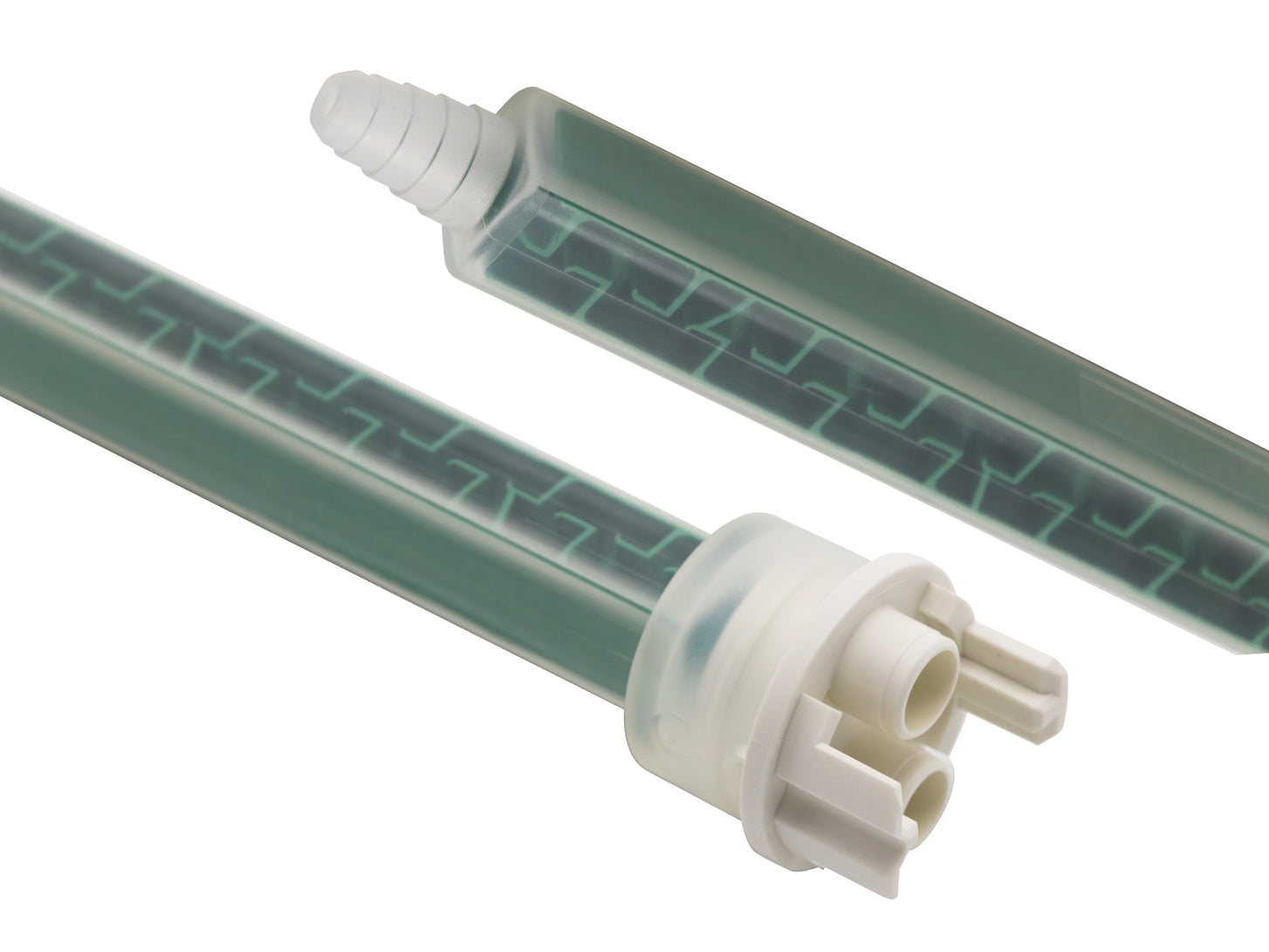

The STATOMIX™ QUADRO MFQ 08-24T-s13 GreenLine is an eco-friendly static mixer made of sustainable polypropylene with 24 mixing elements and a square geometry. It delivers the same reliable performance as the standard MFQ model while reducing plastic use and environmental impact.

Featuring an F-system connection (1:1 / 2:1 white), the mixer ensures a tight seal between cartridge and mixer. Designed for precise mixing and dispensing of 2-component materials such as epoxy, PU and silicone systems. The stepped outlet allows flexible application and compatibility with Luer-Lock tips.

Technical Data

Mixer technology: Square / Turbo mixer
24 mixing elements, element diameter 8.70 mm, outer diameter 11.50 mm
Stepped outlet, orifice 3.20 mm
Housing length 15.5 cm, volume 8.69 ml
Material: GreenLine polypropylene (sustainable, recyclable)
Connection: F-system 1:1 / 2:1 (white)
Compatible with 210–490 ml 2K cartridges
Manufacturer No.: MFQ 08-24T-s13 GreenLine
