Static mixer Quadro MFQ 08-24T

Quantity	Unit price
750+	1,23 €

1 week

Regular price 1,62 €^*

* excl. VAT and shipping

Article number 0001-9998-0824MFQ

Weight 0.011 kg

Mixer technology Square mixers / Turbo mixers

Number of mixing elements 24 mixing elements

Outer diameter (mm) 11.50

Nozzle design at the outlet stepped

Nozzle opening at the outlet (mm) 3.20

Element diameter (mm) 8.70

Housing inlet F-System 1:1 / 2:1 (white)

Case length (cm) 15.50

Material plastic

Manufacturer no. MFQ08-24T

PU / Box 750 pieces (PU / box)

Volume (ml) 8.69

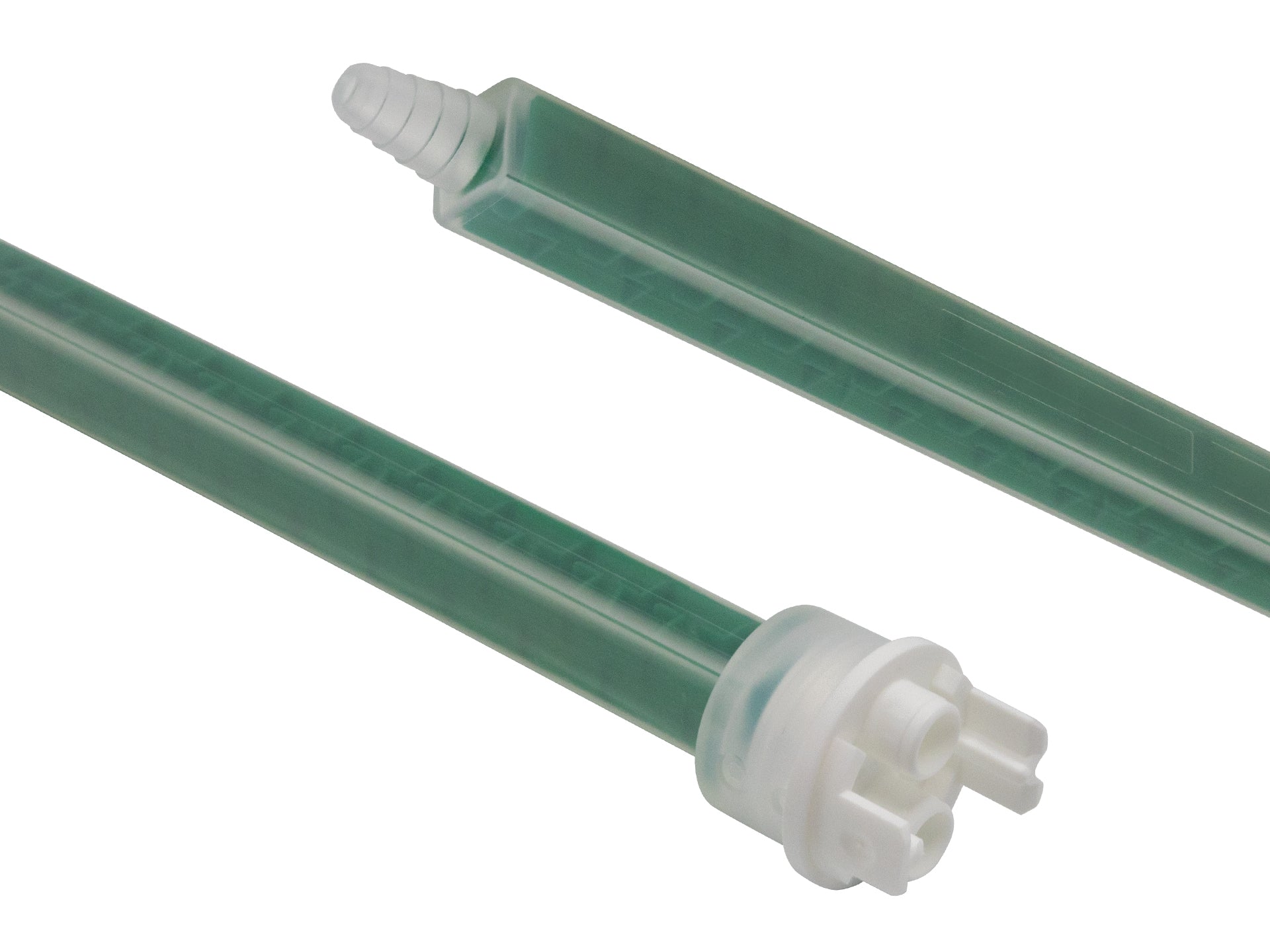

The STATOMIX™ QUADRO MFQ 08-24T is a compact square static mixer made of polypropylene, featuring 24 mixing elements and a stepped outlet for precise application. Designed for 2-component cartridges (F-system 1:1 / 2:1 white), it ensures a perfectly sealed interface between cartridge and mixer.

This turbo-style mixer delivers excellent performance with high-viscosity materials such as epoxy, PU, and silicone systems, while keeping material waste low. The stepped nozzle and optional Luer-Lock tip allow flexible and accurate dispensing.

Technical Data

Mixer technology: Square / Turbo mixer
24 mixing elements, element diameter 8.70 mm, outer diameter 11.50 mm
Stepped outlet, orifice diameter 3.20 mm
Housing length: 15.5 cm, volume: 8.69 ml
Material: Polypropylene (elements and housing)
Connection: F-system 1:1 / 2:1 (white)
Compatible with 210–490 ml 2K cartridges
Manufacturer No.: MFQ 08-24T
