Static mixer medmix Mixpac MAH 05-07T

Quantity	Unit price
5000+	0,53 €
10000+	0,48 €

Delivery time: 1 week

Regular price 0,84 €^*

* excl. VAT and shipping

Article number 0001-9998-0507T

Weight 0.002 kg

Mixer technology Spiral mixer

Number of mixing elements 7 mixing elements

Outer diameter (mm) 7.60

Nozzle design at the outlet stepped

Nozzle opening at the outlet (mm) 1.50

Element diameter (mm) 5.40

Housing inlet Bayonet connection

Case length (cm) 5.60

Material plastic

Manufacturer no. MAH 05-07T

Manufacturer medmix

Innotech article number ITR1052

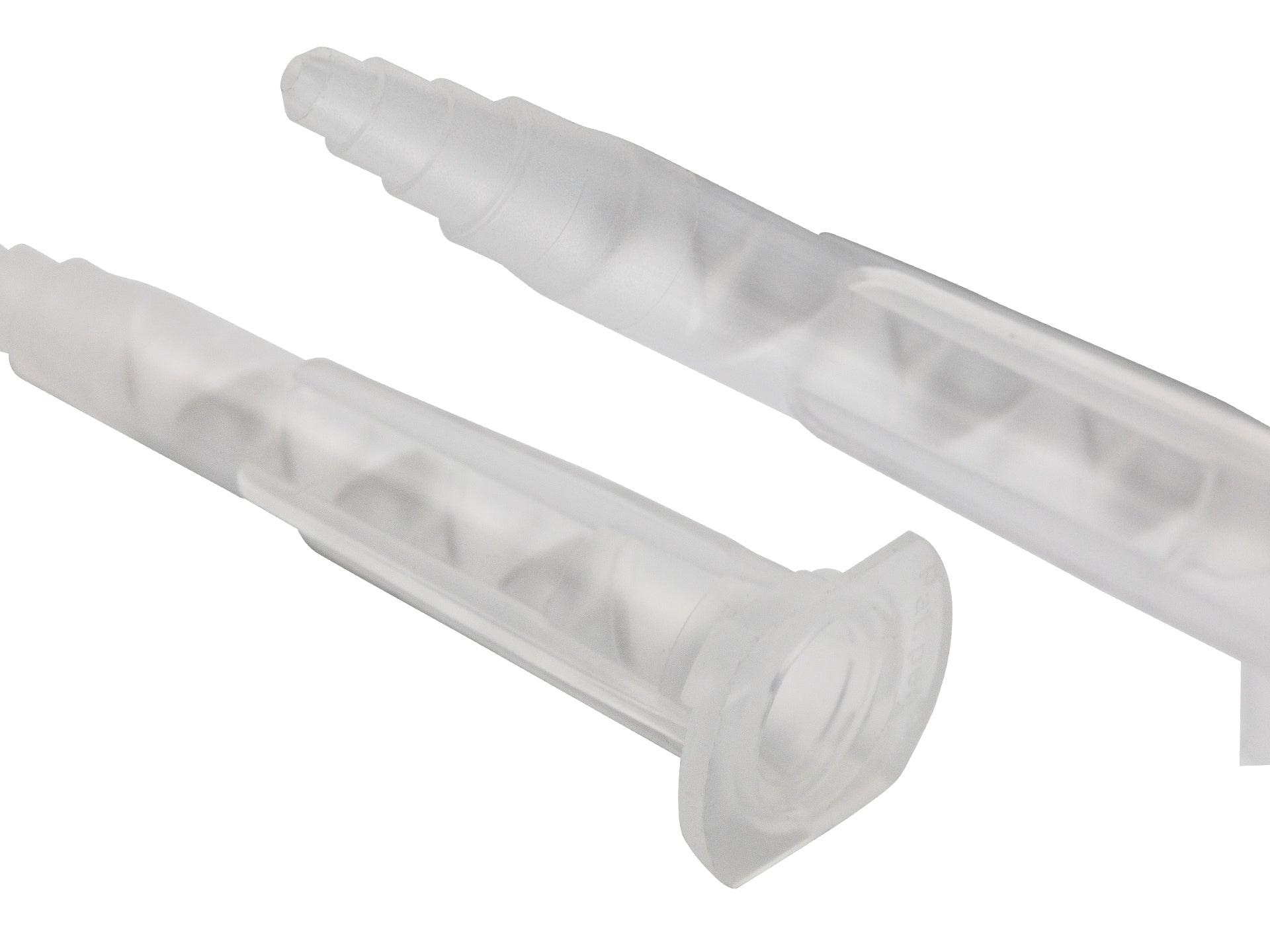

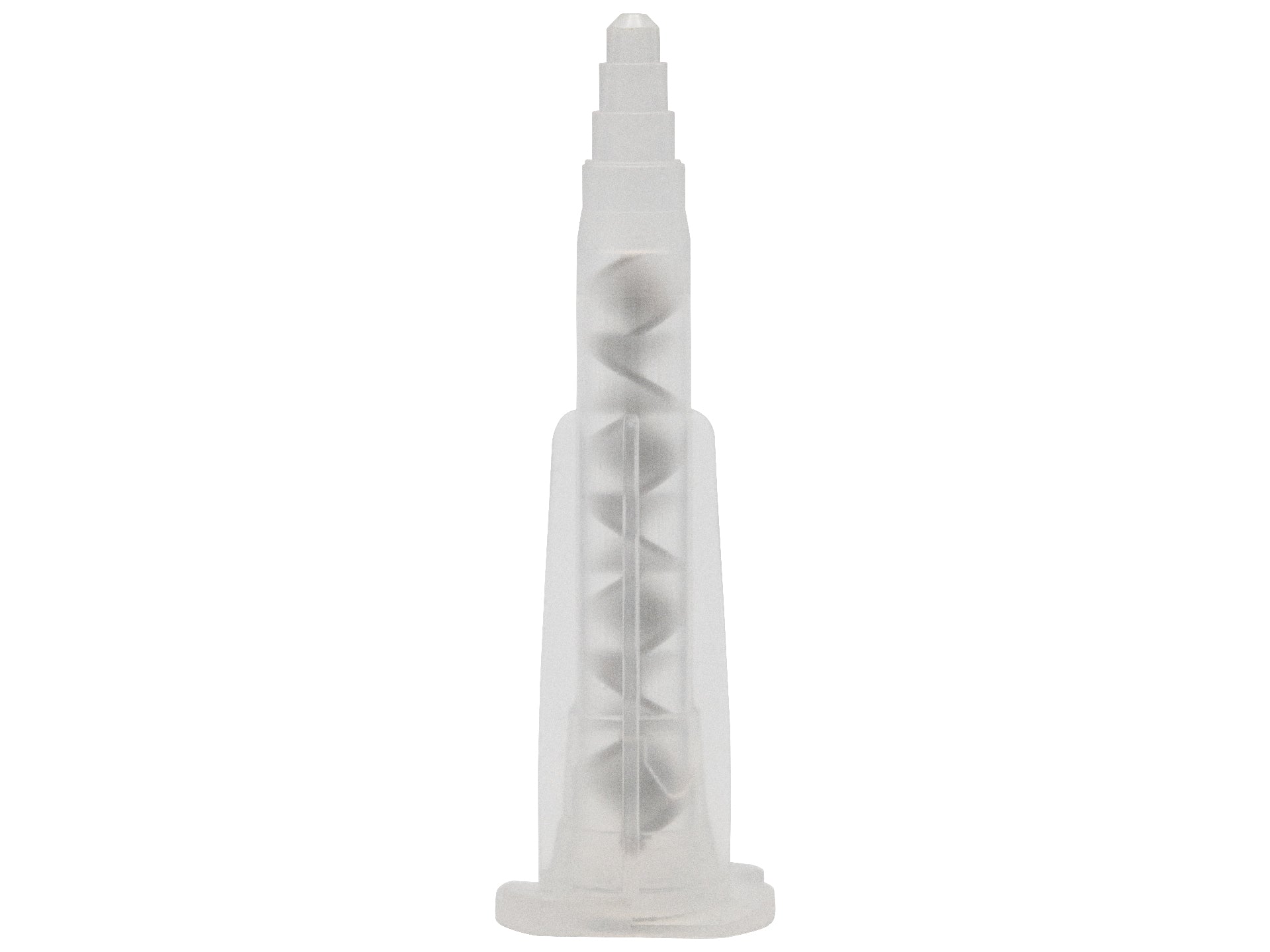

The static mixer MAH 05-07T is a compact helix mixer of the medmix MIXPAC A-system, designed for precise and homogeneous mixing of two-component adhesives and sealants. The proven spiral geometry ensures consistent mixing with minimal material waste.

The A-system bayonet connection provides an easy and secure attachment to cartridges ranging from 25 ml to 75 ml. Separate inlets for A and B components guarantee a completely tight interface, preventing cross-contamination in the connection area.

The MAH version (white) is designed for mixing ratios of 1:1 and 2:1. With its larger diameter, it provides improved mixing performance. The stepped tip allows flexible adjustment of material flow and controlled dispensing.

The use of intra oral tips (IOT) is possible, expanding the range of applications for precise dispensing tasks.

Typical applications include epoxy, polyurethane, silicone and other 2-component adhesives and sealants in precision dispensing and assembly applications.

Documents

Datasheet-Datenblatt Static Mixer Plastic Spiral-Statikmischer Kunststoffspirale
