Static mixer medmix Mixpac MAH 04-13S

Quantity	Unit price
5000+	0,71 €
10000+	0,64 €

Delivery time: upon request

Regular price 1,00 €^*

* excl. VAT and shipping

Article number 0001-9998-0413MAHS

Weight 0.003 kg

Mixer technology Spiral mixer

Number of mixing elements 13 mixing elements

Outer diameter (mm) 5.80

Nozzle design at the outlet Conical

Nozzle opening at the outlet (mm) 2.00

Element diameter (mm) 4.00

Housing inlet Bayonet connection

Case length (cm) 6.60

Material plastic

Manufacturer no. MAH 04-13S

Manufacturer medmix

Innotech article number ITR1841

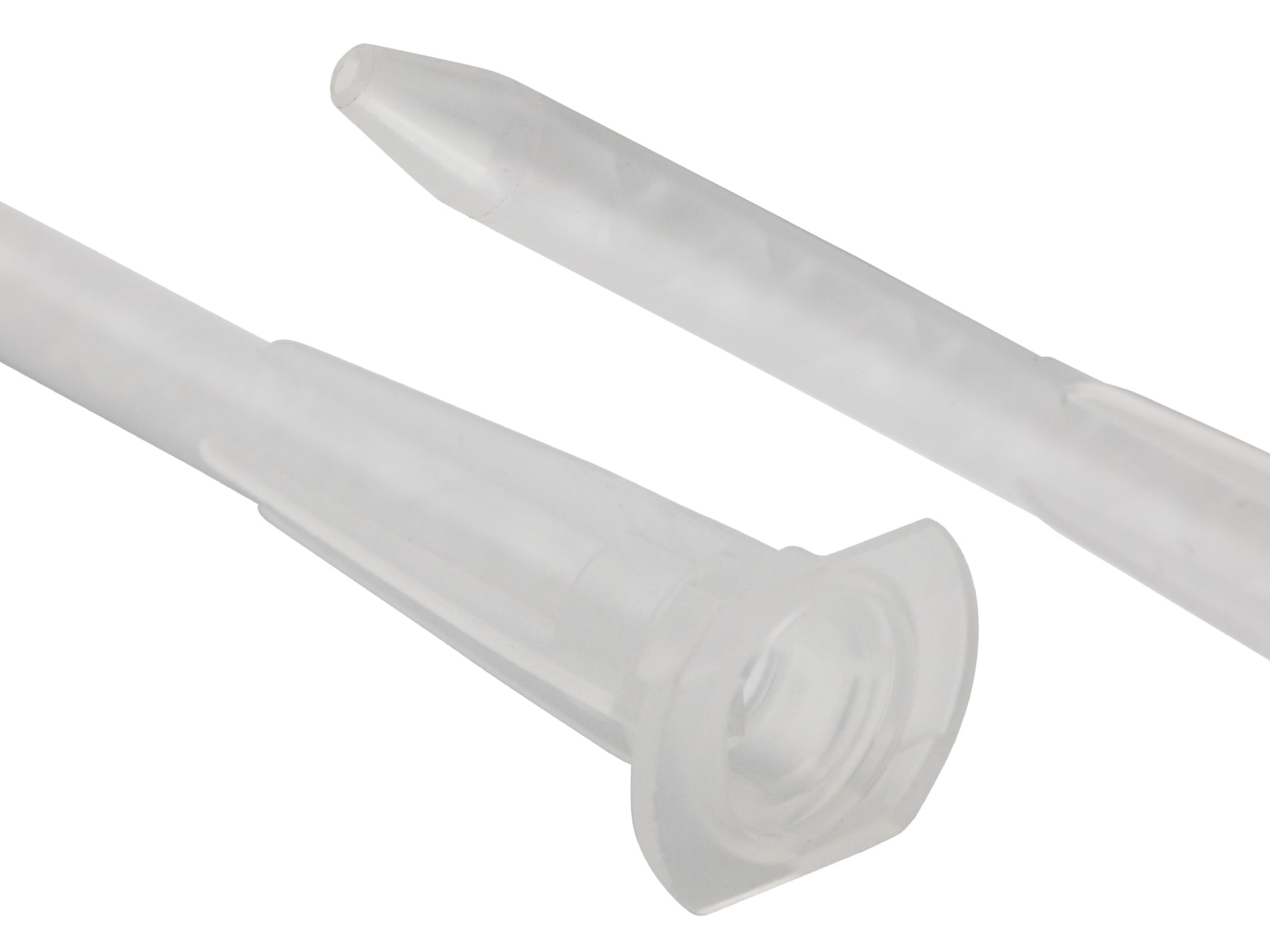

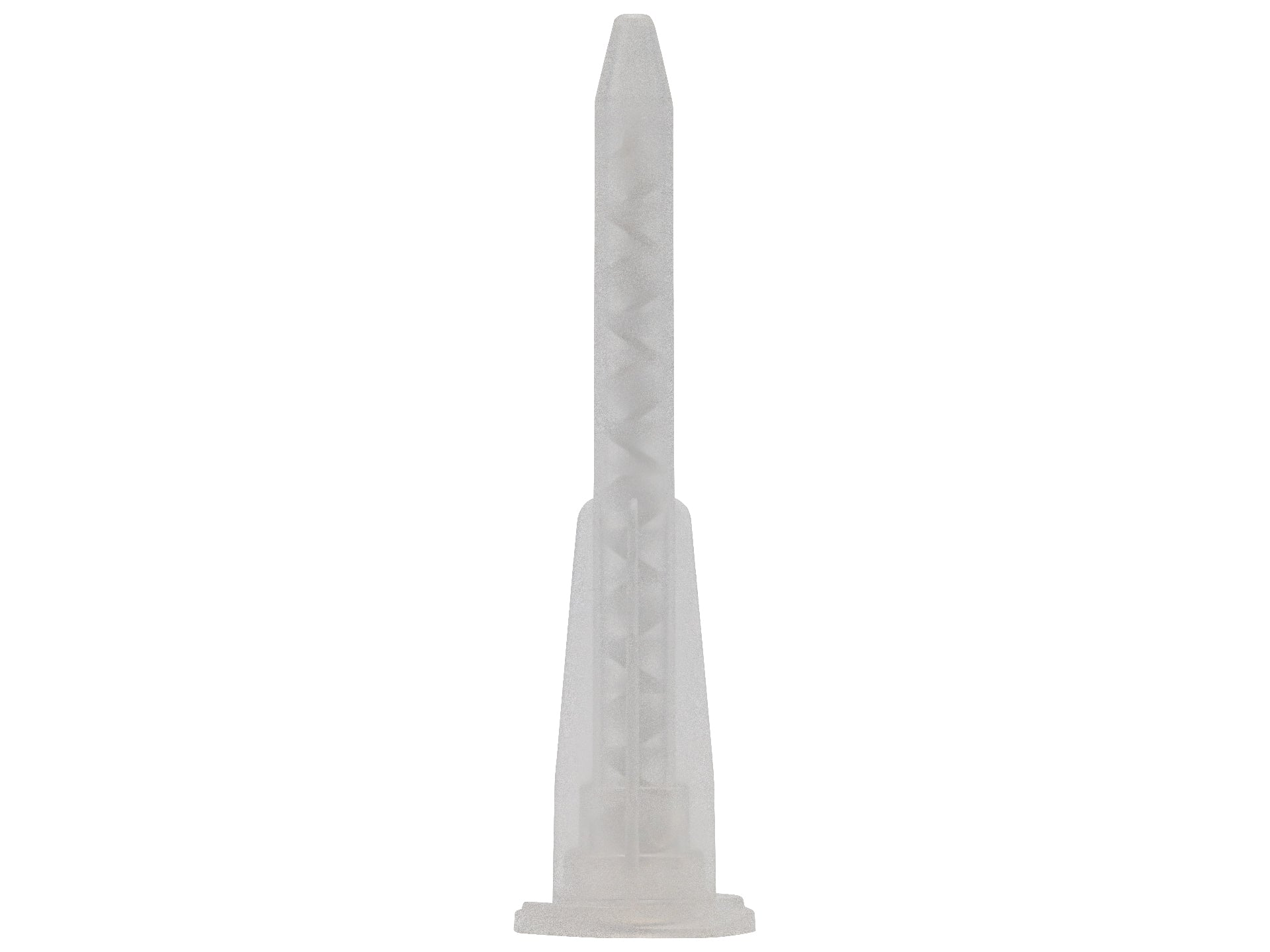

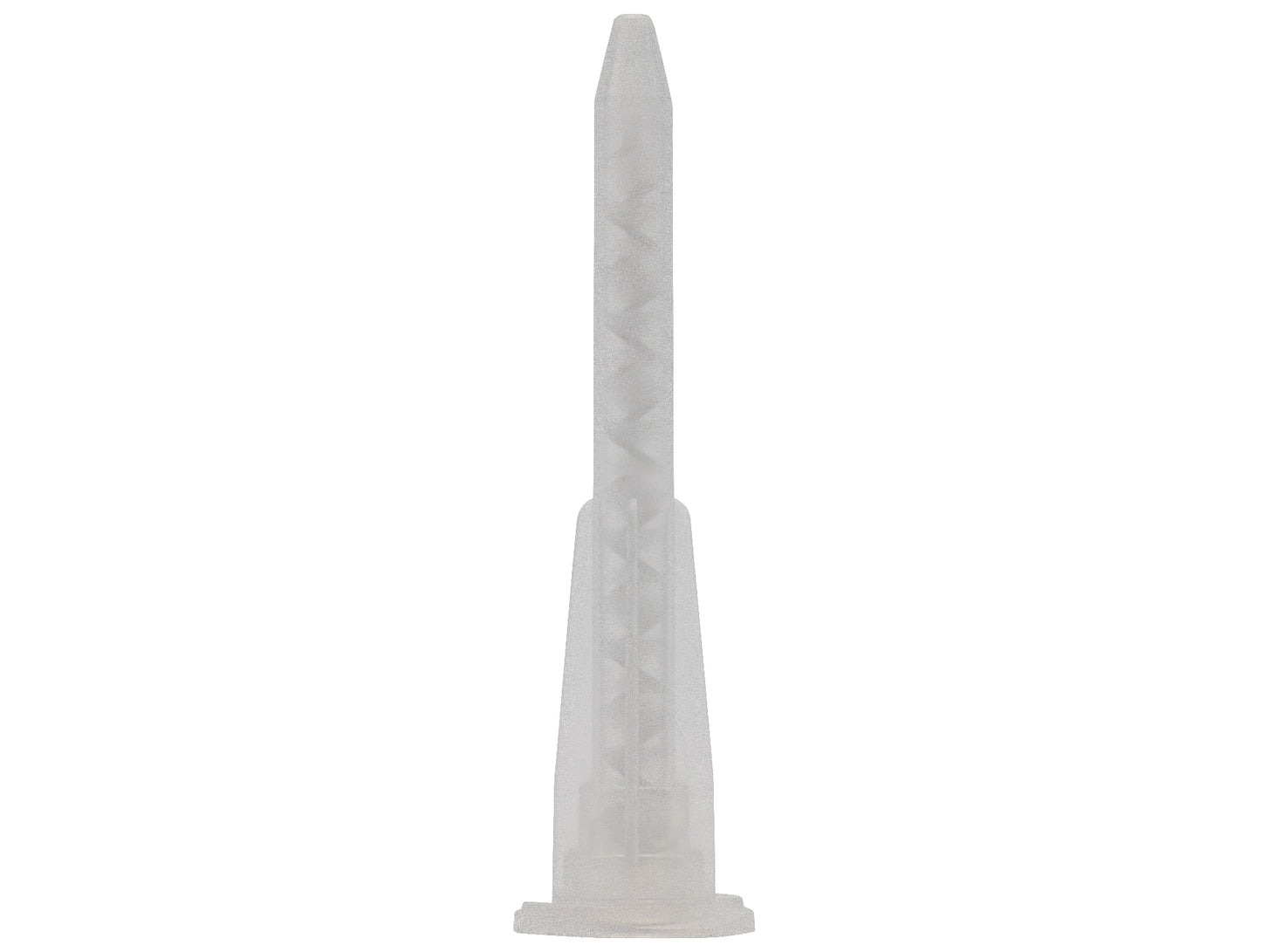

The static mixer MAH 04-13S is a compact helix mixer of the medmix MIXPAC A-system, designed for precise and homogeneous mixing of two-component adhesives and sealants. The proven spiral geometry ensures consistent mixing with minimal material waste.

The A-system bayonet connection provides an easy and secure attachment to cartridges ranging from 25 ml to 75 ml. Separate inlets for A and B components guarantee a completely tight interface, preventing cross-contamination in the connection area.

The MAH version (white) is designed for mixing ratios of 1:1 and 2:1. With its larger diameter and optimized geometry, it provides improved mixing performance. The conical tip allows particularly fine and precise dispensing.

The use of intra oral tips (IOT) is possible, expanding the range of applications for precise dispensing tasks.

Typical applications include epoxy, polyurethane, silicone and other 2-component adhesives and sealants in precision dispensing and assembly applications.

Documents

Datasheet-Datenblatt Static Mixer Plastic Spiral-Statikmischer Kunststoffspirale
