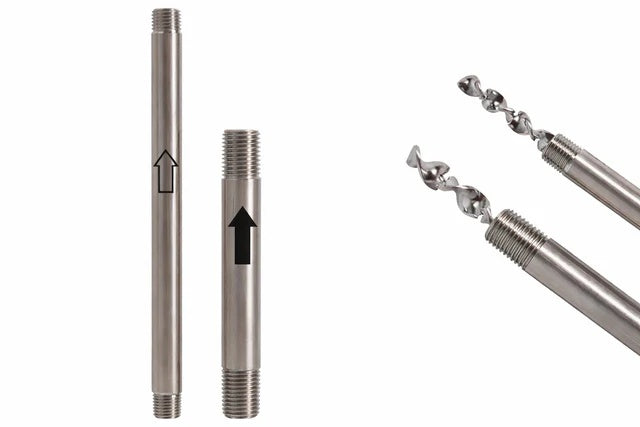

Stainless steel mixer 6mm - 12 elements - with inlet 1⁄8″ NPT

Name: Stainless steel mixer 6mm - 12 elements - with inlet 1⁄8″ NPT
Brand: Diverse
SKU: 0001-9998-0612SSS-A
Availability: InStock

Delivery time: 3 weeks

Article number 0001-9998-0612SSS-A

Weight 0.2 kg

Mixer technology Spiral mixer

Number of mixing elements 12 mixing elements

Outer diameter (mm) 12.00

Nozzle design at the outlet 1/8" NPT

Element diameter (mm) 5.90

Housing inlet 1/8" NPT

Material Stainless steel 1.4571

Length (cm) 13.70

Stainless steel spiral mixing tubes are engineered for demanding industrial mixing applications and are manufactured entirely from high-grade stainless steel. Their modular design allows individual mixing elements to be easily removed or replaced, ensuring efficient cleaning and straightforward maintenance.

Multiple mixers can be interconnected using pipe adapters to create extended mixing lengths. The heavy-walled stainless steel housing remains dimensionally stable even during furnace cleaning and withstands operating temperatures of up to 676 °C (1250 °F). The optimized internal flow geometry minimizes solvent consumption during cleaning processes.

Specifications

Mixing elements: Stainless steel, removable
Housing: Heavy-walled stainless steel tube, threaded on both ends
Design: Modular construction with replaceable mixing elements
Geometry: Flow-optimized to reduce solvent usage
Connection: Male NPT threads
