Material pressure regulator 40-320bar

The material pressure regulator controls the material pressure in the supply line within a range of 40 to 320 bar (high pressure). It is typically installed between the material supply (e.g. drum or piston pump) and the downstream dosing or application technology. Pressure fluctuations from the supply are compensated and the inlet pressure upstream of the dosing pump or application unit is regulated.

The stainless steel version is suitable for adhesives and sealants as well as comparable media. The pneumatic control allows remote pressure setting. Integration into existing 1K and 2K dosing systems is carried out via standard fittings.

Technical features

• Pneumatically controlled, remote pressure setting
• Control range: 40 to 320 bar (high pressure)
• Stainless steel version
• Typical applications: adhesive and sealant dispensing, material supply before dosing pumps and application units

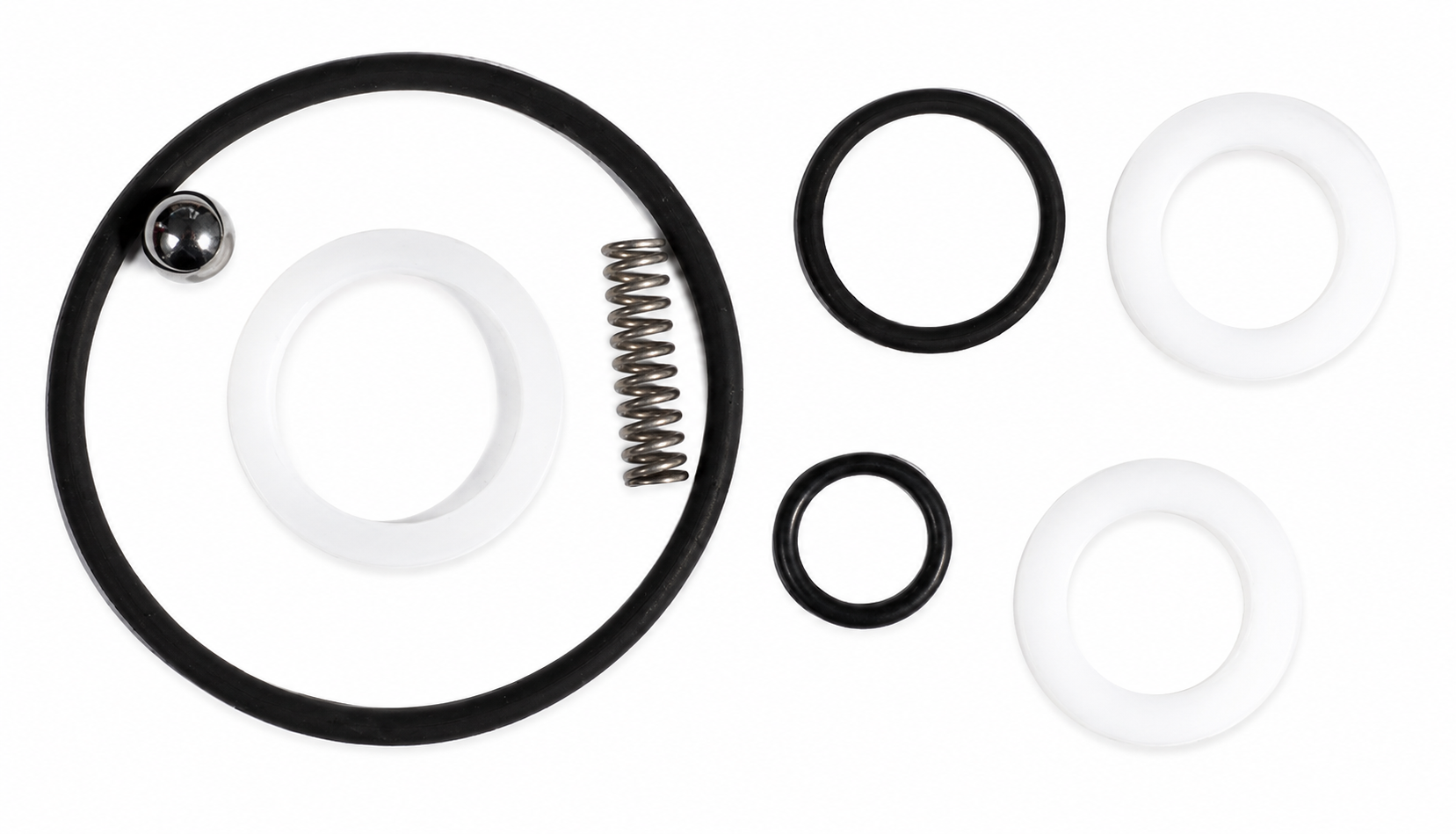

• Matching seal kit: 0001-9988-0006D
