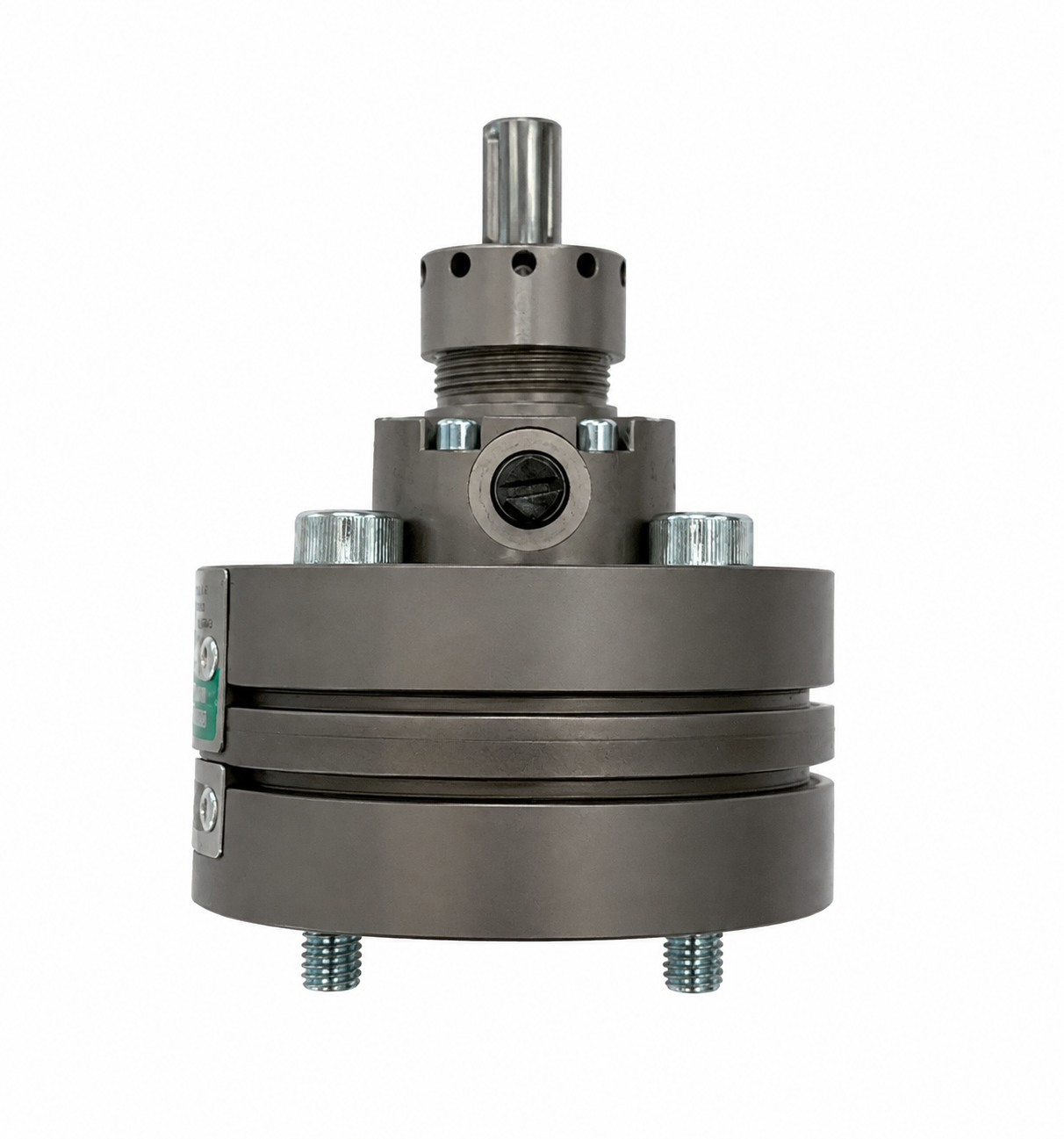

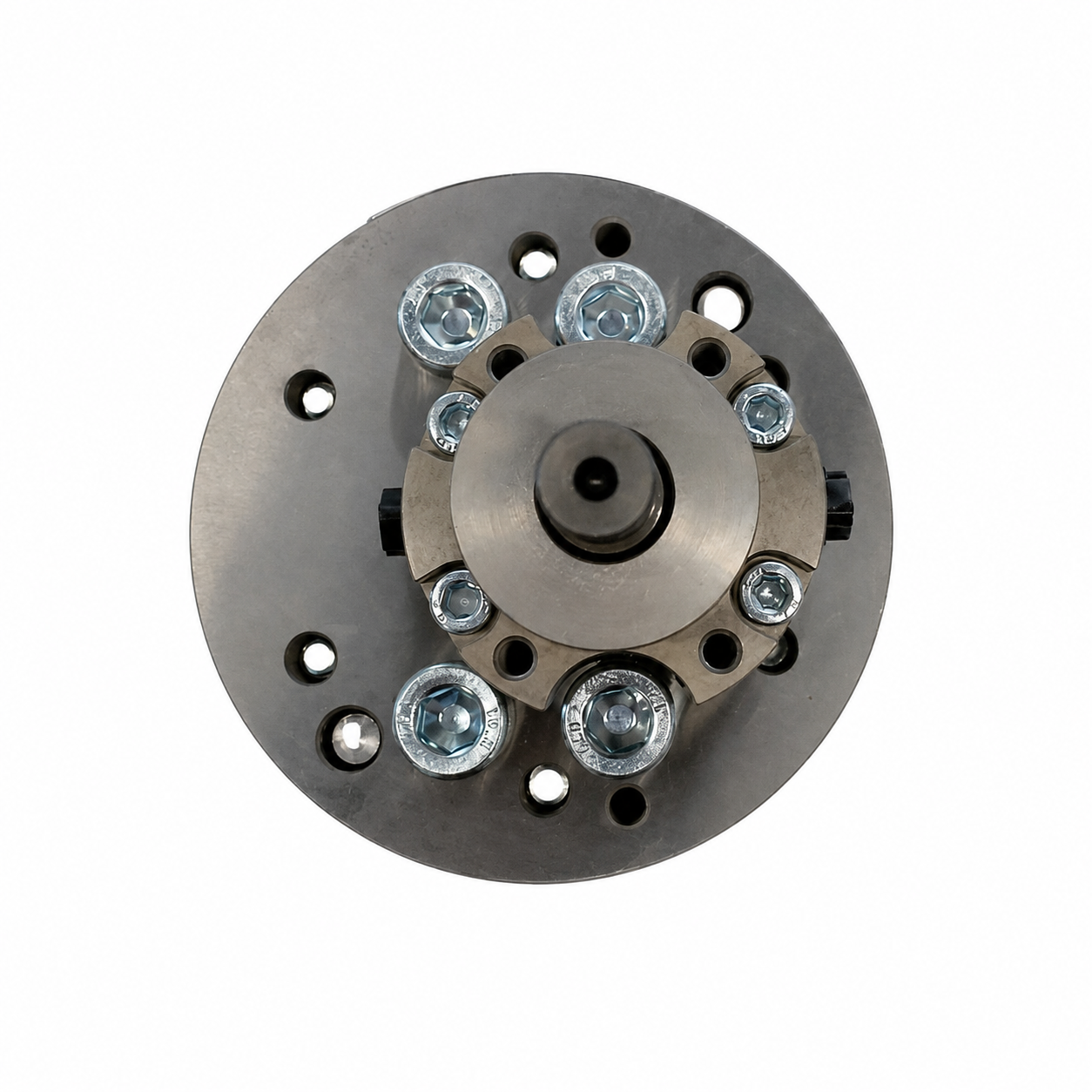

Gear pump 1.2 ccm B

The gear pump 1.2 ccm B is a gear metering pump for industrial mixing and dispensing systems. It is suitable for 1K and 2K adhesives and sealants as well as comparable process materials.

The pump delivers a constant, virtually pulsation-free volume flow. The metering rate is set via the rotational speed, for high repeatability in manual and automated operation.

Technical features

• Displacement: 1.2 ccm per revolution
• Clearance class: for media with a viscosity of 100 to 2,000 mPa·s
• Application: industrial mixing and dispensing systems
• Media: 1K and 2K adhesives and sealants
• Flow behaviour: even, virtually pulsation-free volume flow
• Matching seal kit: 2206-0002-0005

If you have questions about the right gear pump variant for your application, please contact us.
